.Net Core CommandLineApplication Extensions

I wrote a few extensions for the .Net Core CommandLineApplication to setup configuration and the built in DI container.

6/12/2017


Perenthia Source Code

I uploaded the source for Perenthia. I am not sure if everything will compile but it is all there. Perenthia on GitHub

4/20/2016


BeastMUD

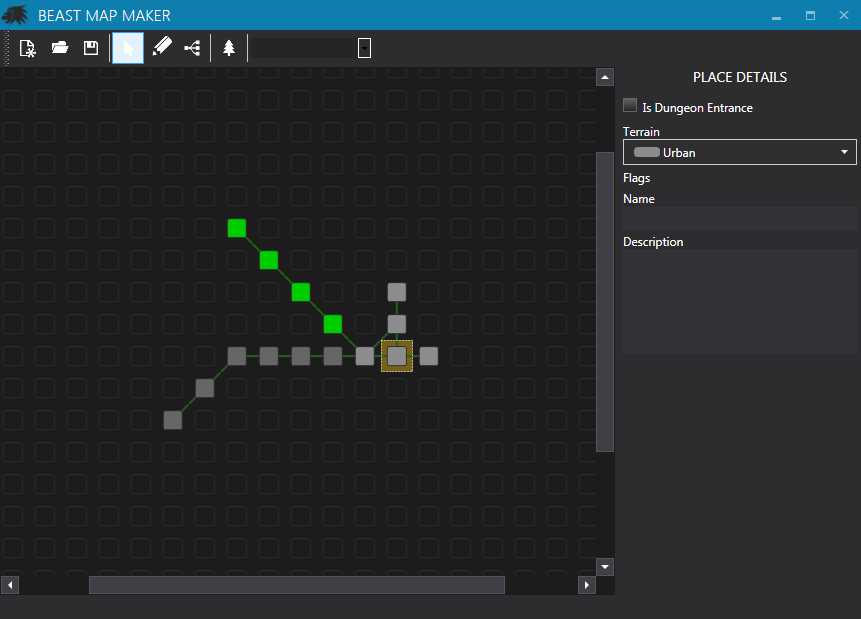

I've been wokring again on my game framework, BeastMUD. (https://github.com/lionsguard/beastmud/tree/v0.5)I got the main framework functional and made some progress with a mapping tool for building and connecting rooms with auto generated dungeons.BeastMUD

5/17/2013


Silverlight Development

Packt Publishing, the folks who published our Microsoft Silverlight 4 Business Application Development book have included some of the chapters of that book in a new mashup of their best selling Silverlight books. The new book is called Managing Media and Data in Microsoft Silverlight 4 and features great chapters from several different authors’ Silverlight books, covering the gambit from XAML and layouts to SharePoint integration to REST and RIA services.

In addition, they are also offering a discount on all Microsoft technology books during the month of May so be sure to check that out as well at Packt’s Microsoft Carnival!

Silverlight is still a great technology for business development, it eases deployment issues with distributed software, provides an interactive experience for users via a browser while maintaining the power of C# in the development life cycle.

5/10/2012


Perenthia–Development Diary #2

I have made some decent progress on scaling Perenthia down and re-tooling it for more basic HTML/mobile access. I have the server core complete and am working on the UI components. The first step will be to get the adventuring/combat piece finished and then move on to the crafting system.

The abstract core server pieces I decided to put into a separate library and made the source available on GitHub. I call it “Leo” and it provides the basic game server and provides some interfaces and associated libraries for processing input through the server. Since I am using SignalR for client to server communication I included some code in Leo to provide a input processor and PersistentConnection. The TestConsole project was something I used to initially setup the game libraries. They are now linked into my Perenthia solution and will be updated as I find the need while working on Perenthia.

The Leo source is very early stages and is subject to change frequently. It is also intended primarily for low traffic games such as iOS, Facebook, etc. I will up some instructions once it gets a little more stable.

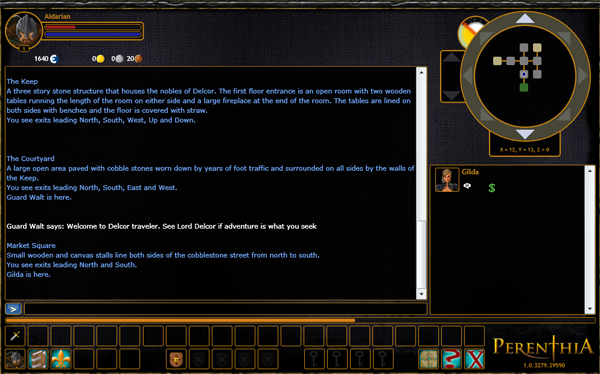

Here is a screenshot of Perenthia’s new progress so far:

perenthia-ss1

5/4/2012


Perenthia–Development Diary #1

I am working on Perenthia again, doing some re-design work to try and make the game fun but also maintainable by one person, me. I am going to catalog my development journey and the design decisions made along the way. I am trying to take what I learned from the prototype/alpha stage and improve upon it with realistic goals and tasks. Since it is just me working on it, other than contracting out the artwork pieces, I need to stay focused on making it fun and trying to implement the features that I think will be fun.

I have actually already started working on a re-usable library to host multi-player games. I have the basic framework in place which includes a base GameObject that provides a dictionary or properties and implements a behaviors system to allow custom behaviors to be created and attached to objects. I also have a master Game class that can be started and runs the server frame loop, updating the world and any loaded objects, behaviors or game components. I used MEF to define externally loaded components and data libraries. The Game class expects an IWorld implementation, some repositories for objects and users and optionally a list of IGameComponents. The IGameComponents are updated with each frame loop so I figured those would be good for creating things like a weather component, pack AI, etc. The IWorld is also a game component but has a few specific methods defined to access data contained within the world from the Game object. Behaviors are simple objects that can be attached to a game object and also contain and Update method that is called during the game object’s update method.

All this is server side code intended to run a virtual world. In addition to the re-usable game server I have a Perenthia specific library built on top of it that defines the aspects that are unique to Perenthia itself. For instance, Perenthia contains a Skill and Race object and loads that data during the world initialization. The underlying virtual world framework is not aware that skills and races exist, just that game objects are being added, removed and updated.

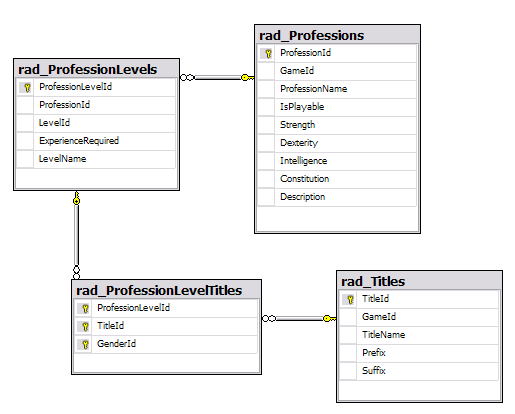

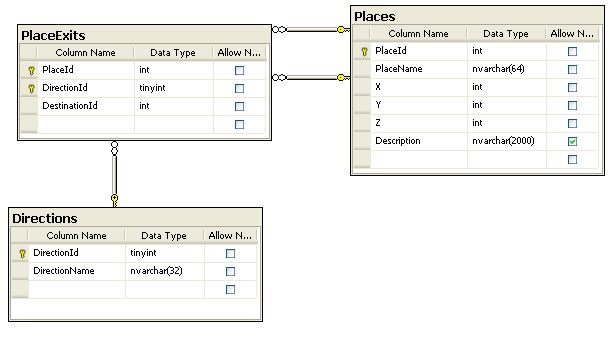

For data storage I put all world data that loads with the world initialization into SQL tables and a few external flat files. User and player data I am going to store in MongoDb to take advantage of the document storage mechanic and store an entire player object as one record. After using relational data for years to store objects and wiring up code to handle the relationships, etc. I find the document storage a refreshing change. I took a look at EF and code first but could not obtain the same level of ease of use as with a document store. I ended up having to code way too much logic specific to how the objects are stored rather than just saving them.

For the initial game client I decided to go the Html5/Javascript route to be able to present to the majority of players. I am using SignalR for the client to server communication and worked out some generic interfaces in the underlying server framework to allow for switching the communication technology. I am also using ScriptSharp to build the client side game logic. I find that using ScriptSharp is helpful as you get compile time errors and can resolve some issues up front without having to use console.log statements for everything. The string typing of objects does help to catch some case typos, etc. that are common for me when doing Javascript.

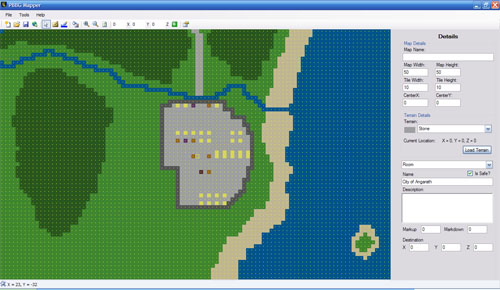

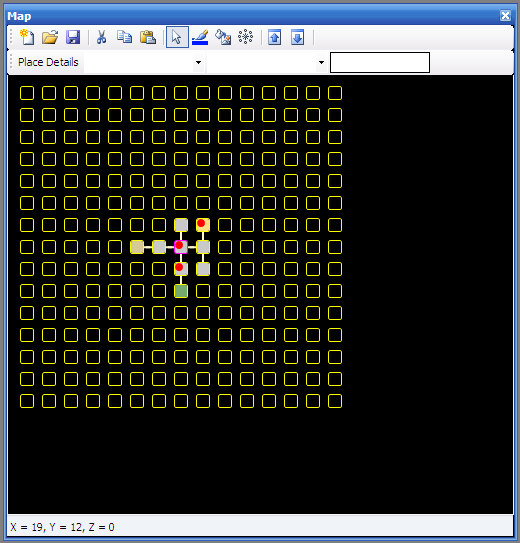

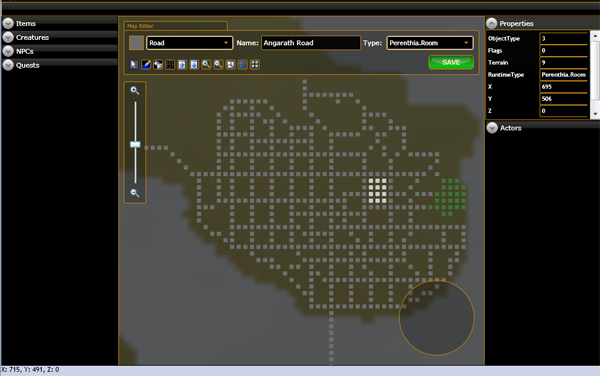

I have also created a world building tool for use with Perenthia. It allows me to draw the tiles that make up the world and save them as flat files for world initialization on the server. Using ScriptSharp I also coded some logic on the client to retrieve and load the maps. I can manage some of the SQL table stuff using the world build but want to get it to the point where I can add objects. My plan is to drop objects onto the map where an object resides within a tile, so not completely to scale or anything. My initial thoughts are to be able to add things like shops, taverns, etc. I also want to be able to add things like trees that can be cut down or a rock quarry for mining. I just not have not gotten to fleshing out all those details as of yet but that is the general plan.

What I am currently working on is randomization of creature encounters. I created a table to hold creature templates and then cataloged them by terrain. So for instance, in grass one might encounter a rat or kobold. In addition to that I created a feature in the world builder for editing creature zones. I store some zones in the database and then draw them on the world tiles to create the creature zones. So what I am working on is when a player moves onto a tile, if an encounter should happen I check to see if any creatures exist for the current terrain. If creatures exist I randomly get one with the level range marked by the zone. I am also thinking I may not return any creatures that are too low level for the player so you are not bogged down by encounters in low level areas and can move more freely into higher level areas. Once I get to where I have some decent encounters I am going to move on to the item system.

11/21/2011


Discount on Silverlight 4 Book

Mine and Frank's book Silverlight 4 Business Application Development: Beginner's Guide will be part of a promotion at Packt starting September 21st and running until September 30th. You can get 20% off the print copy and 30% off the e-book copy during this time!

Visit Packt's website for more details.

9/12/2011


Puppyman Characters

Here is a splash page for Puppyman showing all of the characters in the current version:

Puppyman

8/24/2011


Puppyman iPhone Game Released

I have recently released my first iPhone game titled "Adventures of Puppyman". The game is available from the AppStore.

Puppyman is intended for anyone wanting to waste some time in their day ;) Younger children may also enjoy it as it features little cartoon characters and is easy enough to figure out and play. To read more about it and watch a video of the game play just visit the link below.

Adventures of Puppyman

8/20/2011


Testing Facebook Credits with ASP.NET

I ran into some issues attempting to test Facebook Credits with ASP.NET locally during development. I have an MVC3 site that is running in the Azure Development Environment and I wanted to be able to test the credits functionality. I played around with a bunch of settings, etc. and finally got a combination of things working that allows me to test credits locally. Below are the steps I took:

1. Set the web project as the startup project in the Visual Studio solution. Unless you need specific Azure functionality this is much easier since Azure does not want to accept traffic from anything other than localhost and credits testing will not work with localhost.

2. Set your web project to run using IIS or IIS Express bound to http://localhost. (Project Properties -> Web -> Servers) If you want to use IIS Express and have IIS installed you will need to unbind the default web site from port 80. ** I also had to stop the Web Deployment Agent Service as it binds to port 80.

3. I used DynDns.com to provide a host name for my web site and entered this as the domain for both the Canvas Url and Credits Callback Url. The Credits callback will not work with 127.0.0.1 or localhost so you need some external domain. I tried using a made up entry in my HOSTS file but Facebook needs a real address since they initiate the request for the callback.

4. I edited the applicationHost.config file under %userprofile%documentsiisexpress to allow my DynDns name like so (system.applicationHost/sites node):



<site name="WebAppName" id="1">

                <application path="/" applicationPool="Clr4IntegratedAppPool">

                    <virtualDirectory path="/" physicalPath="DirToWeb" />

                </application>

                <bindings>

                    <binding protocol="http" bindingInformation="*:80:localhost" />

                    <binding protocol="http" bindingInformation="*:80:dyndnsname" />

                </bindings>

            </site>



5. Do any port forwarding on your router and enable port 80 on your firewall.

6. Setup the callback code according to the Facebook Docs, I even used the JS sample code to test.

6/24/2011


Perenthia in the Cloud

Part of the Perenthia re-birth is to get the game running in the cloud on Windows Azure. I started an Azure 1.2 web role project to handle the game. I got some of the basic stuff working like authentication and character creation. With the release of Azure 1.3 SDK I had to install IIS 7.5 components. Since I did not install it previously I had to run “aspnet_regiis –iru” to setup the IIS mappings for .NET 4 and I had to install the “HTTP Redirection” component for IIS 7. After getting all that setup I am up and running with Azure 1.3.

Because I am scaling the game down a bit and restructuring it to run with basic html and a variety of devices I am essentially re-building the game. I have a lot of code to work from and the concepts are already defined but I do have to do some new things. With running in the cloud some of the previous in-memory stuff I was doing has to be setup to store that in-memory data either in the database or in Azure Storage. For instance, when you connect to the game you get a token or session that identifies you. That token contains a reference to an in-memory object that stores the user id and currently selected character of the player. While I could setup and use .NET Sessions with some providers to store the data in Azure Storage I am going to continue to use the existing system I had in place and store in the in-memory data in Azure Table Storage.

I have some additional in-memory data that will either scale back to database driven queries or work the same way as tokens/sessions with table storage.

12/1/2010


Perenthia Chapter 2

After many months of not working on Perenthia I find myself once again desiring to see it complete. The last revision I did on Perenthia was some time ago and involved a Silverlight UI with a C#/SQL 2008 backend.

During the course of development on Perenthia I discovered some of the pitfalls of attempting to develop a role playing game by one self. Mainly, the inability to handle content creation on a large enough scale as to appeal to players and have enough interactivity to make the game fun. I have been thinking lately of ways to reduce that load and still keep the game fun. I have some new ideas I want to put into place and re-release Perenthia with these concepts.

Among the changes I plan to implement will be scaling the game down to function solely in an HTML environment. This will enable me to provide a mobile version that works on all phones with a browser and keep the feature set the same for both phone and web.

I have begun to refactor pieces of the code and am making heavy use of jquery for the character creation screen.

11/30/2010


Countdown to Fall!

5/31/2010


Silverlight and Windows Phone 7 Game

With the release of Silverlight 4 RC the Windows Phone 7 developer tools I wanted to take a stab at building a Silverlight application for both the web and phone to see what kind of differences there are between the two. Except for the inability to use the ChildWindow I was able to build out controls and share them between the two applications. The main differences were in the MainPage.xaml that is created, along with the default styles, when you create a new Silverlight application for the web and Windows Phone 7. Of course,

I decided to create a game (called ShapeAttack) to see how it would perform on the phone emulator. Sad to say the performance on the emulator is very poor but I would imagine that it would be better on the physical device but as I do not own a Windows Phone 7 yet the emulator has to do for now. For that reason I would recommend doing this parallel type of development so you can actually test your application.

What I did was create all of the game code in UserControls, including the main game surface, then I linked the files from the standard Silverlight project into the phone project.

The game is very simple and kind of cheesy :D, just click on the shapes to destroy them. And of course you can download the source code for ShapeAttack(2.8MB) or play ShapeAttack online.

ShapeAttack

3/27/2010


Performance Tips for Silverlight on Windows Phone 7

Andy Beaulieu has some helpful performance tips for Windows Phone 7 and Silverlight primarily focused on games of course.

3/25/2010


Silverlight Community

Jeff Weber, the guy behind the Farseer Physics Engine, has posted an An Open Letter To Microsoft Regarding The Silverlight Game Development Community. I fully agree and want to add my voice in the request for an XNA-like community site!

From Jeff’s post:

“I hereby request, on behalf of all the future and present Silverlight game developers,  an awesome Silverlight game development portal along the lines of what exists for the XNA Creators Club Online community.”

3/24/2010


Bug in Windows Phone 7 Emulator for Multi-Threading

Laurent Bugnion has discovered a bug in the Windows Phone 7 emulator when multi-threading and has posted a workaround:

3/20/2010


MIX 10 Sessions

Frank LaVigne has posted a very useful tool to download all of the MIX 10 session content.

3/17/2010


Pirates Video

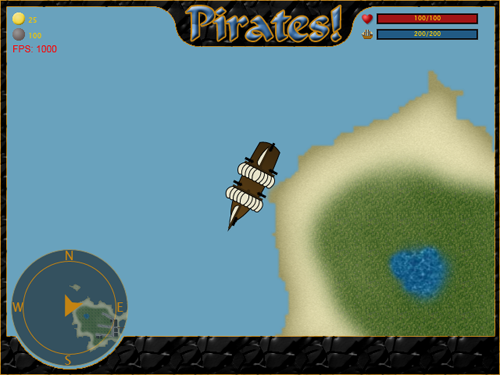

Here is a video of the Pirates game:

[youtube http://www.youtube.com/watch?v=b9LHFS1dKWg&hl=en_US&fs=1&color1=0x2b405b&color2=0x6b8ab6]

3/11/2010


General Purpose Sprite Class

On the heels of some great posts by Bill Reiss on Sprites Part 1 and Sprites Part 2 in Silverlight I wanted to post some general base sprite classes that I use. The classes are intended to be used with the SilverSprite framework.

These classes all exist in an assembly I lovingly call the “Shady Engine” (to explain the namespaces)

The base class I used is ingeniously called Sprite. It implements an interface called ISprite. I added the interface in order to create an interface called IPlayer that the main Game class uses.

ISprite.cs

using System.Windows;using Microsoft.Xna.Framework;namespace Shady.Sprites{    public interface ISprite    {        ISprite Owner { get; set; }        Vector2 Position { get; set; }        double Rotation { get; set; }        System.Windows.Point Scale { get; set; }        double Width { get; set; }        double Height { get; set; }        Rect Bounds { get; }        bool IsActive { get; set; }    }}
.csharpcode, .csharpcode pre{ font-size: small; color: black; font-family: consolas, "Courier New", courier, monospace; background-color: #ffffff; /*white-space: pre;*/}.csharpcode pre { margin: 0em; }.csharpcode .rem { color: #008000; }.csharpcode .kwrd { color: #0000ff; }.csharpcode .str { color: #006080; }.csharpcode .op { color: #0000c0; }.csharpcode .preproc { color: #cc6633; }.csharpcode .asp { background-color: #ffff00; }.csharpcode .html { color: #800000; }.csharpcode .attr { color: #ff0000; }.csharpcode .alt{ background-color: #f4f4f4; width: 100%; margin: 0em;}.csharpcode .lnum { color: #606060; }

And here is the Sprite.cs file:

using System;using System.Windows;using System.Windows.Controls;using System.Windows.Markup;using System.Windows.Media;using System.Windows.Media.Imaging;using System.Windows.Shapes;using Microsoft.Xna.Framework;namespace Shady.Sprites{    [TemplatePart(Name = PART_RootElement, Type = typeof(Canvas))]    [TemplatePart(Name = PART_ContentElement, Type = typeof(ContentControl))]    [TemplatePart(Name = PART_DebugCenter, Type = typeof(Ellipse))]    [ContentProperty("Content")]    public class Sprite : Control, ISprite    {        public const string PART_RootElement = "PART_RootElement";        public const string PART_ContentElement = "PART_ContentElement";        public const string PART_DebugCenter = "PART_DebugCenter";        protected Canvas RootElement { get; set; }        protected ContentControl ContentElement { get; set; }        protected Ellipse DebugCenterElement { get; set; }        protected TranslateTransform TranslateTransform { get; set; }        protected RotateTransform RotateTransform { get; set; }        protected ScaleTransform ScaleTransform { get; set; }        protected double HalfWidth = 0;        protected double HalfHeight = 0;        public ISprite Owner { get; set; }        public object Content        {            get { return (object)GetValue(ContentProperty); }            set { SetValue(ContentProperty, value); }        }        public static readonly DependencyProperty ContentProperty = DependencyProperty.Register("Content", typeof(object), typeof(Sprite), new PropertyMetadata(null));        public bool Debug        {            get { return (bool)GetValue(DebugProperty); }            set { SetValue(DebugProperty, value); }        }        public static readonly DependencyProperty DebugProperty = DependencyProperty.Register("Debug", typeof(bool), typeof(Sprite), new PropertyMetadata(false, new PropertyChangedCallback(Sprite.OnDebugPropertyChanged)));        private static void OnDebugPropertyChanged(DependencyObject obj, DependencyPropertyChangedEventArgs e)        {            var sprite = obj as Sprite;            if (sprite == null)                return;            if (sprite.DebugCenterElement != null)                sprite.DebugCenterElement.Visibility = (bool)e.NewValue ? Visibility.Visible : Visibility.Collapsed;        }        public Vector2 Position        {            get            {                var x = (double)GetValue(Canvas.LeftProperty);                var y = (double)GetValue(Canvas.TopProperty);                return new Vector2((float)x, (float)y);            }            set            {                SetValue(Canvas.LeftProperty, (double)value.X);                SetValue(Canvas.TopProperty, (double)value.Y);            }        }        public virtual double Rotation        {            get { return this.RotateTransform.Angle; }            set { this.RotateTransform.Angle = value; }        }        public System.Windows.Point Scale        {            get { return new System.Windows.Point(this.ScaleTransform.ScaleX, this.ScaleTransform.ScaleY); }            set            {                this.ScaleTransform.ScaleX = value.X;                this.ScaleTransform.ScaleY = value.Y;            }        }        public new double Width        {            get { return base.Width; }            set            {                base.Width = value;                HalfWidth = Width * 0.5;                TranslateTransform.X = -HalfWidth;                if (this.DebugCenterElement != null)                    Canvas.SetLeft(this.DebugCenterElement, HalfWidth);            }        }        public new double Height        {            get { return base.Height; }            set            {                base.Height = value;                HalfHeight = Height * 0.5;                TranslateTransform.Y = -HalfHeight;                if (this.DebugCenterElement != null)                    Canvas.SetTop(this.DebugCenterElement, HalfHeight);            }        }        public Rect Bounds        {            get            {                Vector2 position = this.Position;                return new Rect(position.X - HalfWidth, position.Y - HalfHeight, this.Width, this.Height);            }        }        private WriteableBitmap _bitmap;        protected internal virtual WriteableBitmap Bitmap        {            get            {                if (_bitmap == null && this.ContentElement != null)                {                    var content = this.ContentElement.Content;                    if (content != null && content is Image)                    {                        _bitmap = new WriteableBitmap((int)this.Width, (int)this.Height);                        _bitmap.Render((content as Image), new TranslateTransform());                        _bitmap.Invalidate();                    }                }                return _bitmap;            }        }        private bool _isActive = true;        public bool IsActive        {            get { return _isActive; }            set            {                _isActive = value;                this.Visibility = _isActive ? Visibility.Visible : Visibility.Collapsed;            }        }        public Sprite()        {            this.DefaultStyleKey = typeof(Sprite);            this.TranslateTransform = new TranslateTransform();            this.RotateTransform = new RotateTransform();            this.ScaleTransform = new ScaleTransform();        }        public override void OnApplyTemplate()        {            base.OnApplyTemplate();            this.RootElement = GetTemplateChild(PART_RootElement) as Canvas;            this.ContentElement = GetTemplateChild(PART_ContentElement) as ContentControl;            this.DebugCenterElement = GetTemplateChild(PART_DebugCenter) as Ellipse;            if (DebugCenterElement != null && !Double.IsNaN(this.Width) && !Double.IsNaN(this.Height))            {                Canvas.SetLeft(DebugCenterElement, HalfWidth - 1.5);                Canvas.SetTop(DebugCenterElement, HalfHeight - 1.5);            }            if (this.RootElement != null)            {                var group = new TransformGroup();                group.Children.Add(TranslateTransform);                group.Children.Add(RotateTransform);                group.Children.Add(ScaleTransform);                this.RootElement.RenderTransform = group;                this.RootElement.RenderTransformOrigin = new System.Windows.Point(0, 0); // At 0,0 because the translate transform positions the sprite.            }            this.Initialize();        }        public virtual void Initialize()        {        }        public virtual void Update(GameTime gameTime)        {        }        public virtual void Draw(GameTime gameTime)        {        }        /// <summary>        /// Re-initializes the sprite.        /// </summary>        public virtual void Reset()        {            this.IsActive = true;            this.Owner = null;        }        protected static void OnDependencyPropertyChanged(DependencyObject obj, DependencyPropertyChangedEventArgs e)        {            var sprite = obj as Sprite;            if (sprite == null) return;            sprite.Initialize();        }    }}
.csharpcode, .csharpcode pre{ font-size: small; color: black; font-family: consolas, "Courier New", courier, monospace; background-color: #ffffff; /*white-space: pre;*/}.csharpcode pre { margin: 0em; }.csharpcode .rem { color: #008000; }.csharpcode .kwrd { color: #0000ff; }.csharpcode .str { color: #006080; }.csharpcode .op { color: #0000c0; }.csharpcode .preproc { color: #cc6633; }.csharpcode .asp { background-color: #ffff00; }.csharpcode .html { color: #800000; }.csharpcode .attr { color: #ff0000; }.csharpcode .alt{ background-color: #f4f4f4; width: 100%; margin: 0em;}.csharpcode .lnum { color: #606060; }

Because Sprite is a templated control there is also some XAML to go along with it (You will need to place this in a themes/generic.xaml file):

<Style TargetType="sprites:Sprite">        <Setter Property="Background" Value="{x:Null}"></Setter>        <Setter Property="Foreground" Value="{x:Null}"></Setter>        <Setter Property="Template">            <Setter.Value>                <ControlTemplate TargetType="sprites:Sprite">                    <Canvas x:Name="PART_RootElement" Background="{TemplateBinding Background}">                        <ContentControl x:Name="PART_ContentElement"/>                        <Ellipse x:Name="PART_DebugCenter" Width="3" Height="3" Fill="Red" Visibility="Collapsed"/>                    </Canvas>                </ControlTemplate>            </Setter.Value>        </Setter>    </Style>
.csharpcode, .csharpcode pre{ font-size: small; color: black; font-family: consolas, "Courier New", courier, monospace; background-color: #ffffff; /*white-space: pre;*/}.csharpcode pre { margin: 0em; }.csharpcode .rem { color: #008000; }.csharpcode .kwrd { color: #0000ff; }.csharpcode .str { color: #006080; }.csharpcode .op { color: #0000c0; }.csharpcode .preproc { color: #cc6633; }.csharpcode .asp { background-color: #ffff00; }.csharpcode .html { color: #800000; }.csharpcode .attr { color: #ff0000; }.csharpcode .alt{ background-color: #f4f4f4; width: 100%; margin: 0em;}.csharpcode .lnum { color: #606060; }

That is my basic Sprite class, I will post my animated sprite class next.

3/10/2010


Yar, I do be re-visiting Pirates!

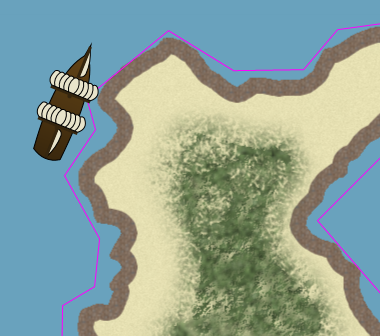

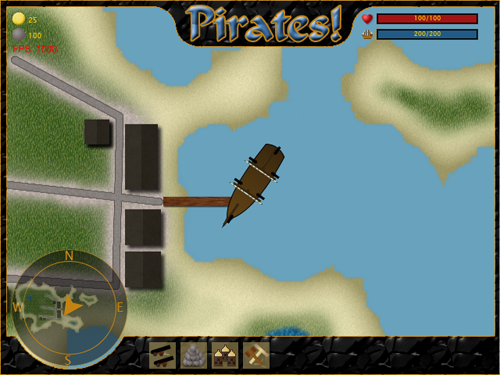

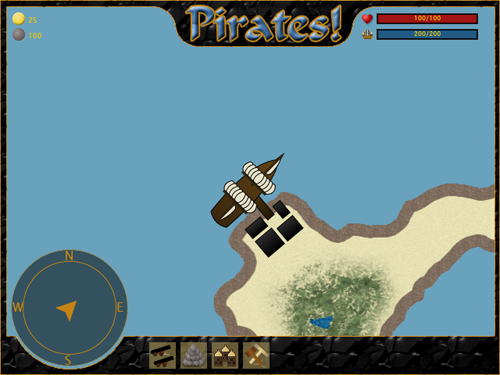

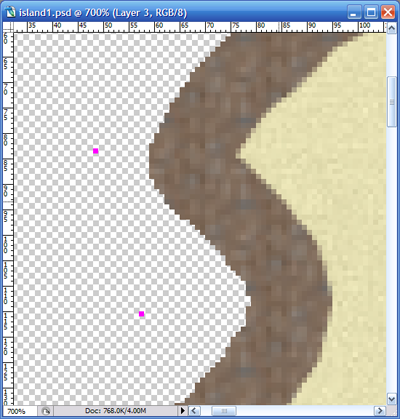

One of the first games I started building in Silverlight I called Pirates! Since working on Perenthia and various other tasks I have not re-visited the game for a long time. I really would like to get this game finished so I have to decided to spend some time working on it. I hope to include some videos soon that show the game in varied stages of development. The first screen shot displays what currently exists after implementing some path finding and the SilverSprite library:

Here is the post from the game blog: Pirates Game in Silverlight

3/10/2010


Silverlight 4 Book Discount Codes!

If you plan on pre-ordering Silverlight 4 Business Application Development – Beginner's Guideuse the following codes to save some money!

MsSilver15 – Save 15% off hard copy of the book

MsSilver30 – Save 30% off the eBook

If you are looking to get into Silverlight this is a great intro book. Frank Lavigne starts the book out by getting you involved in the code right away and we try and keep the working code methodology through out. If you learn by doing then you will benefit from the book!

2/2/2010


XNA and Silverlight Development

Mad Laumann has a new post up about the development progress of his game Little Longhorn, a tower defense game written for XNA and Silverlight using the SilverSprite framework. I have been following his progress with the game and have been able to play the early versions of it (both XNA and Silverlight) and have found it quite fun and challenging. The game has grown quite a bit over the last few months with game play and graphics improving all the time. Needless to say Mads is becoming an authority on XNA/Silverlight combination platform development so be sure to check out his blog A Silverlight Playground.

2/1/2010


System.Xml.Linq Extensions

I thought I would some extension methods I have been using for a little while now for Linq to Xml. When loading and retrieving the attribute values from XML nodes via Linq there is a bit of code to write to make sure the attribute exists and that the value is a valid data type. Rather than having a bunch of code to do this I simply wrote some extensions that operate on an XElement and are targeted at returning the value of an XAttribute.

Usage:

var element = XElement.Parse("<value x="50.5"/>");var value = element.GetDoubleValue("x");
.csharpcode, .csharpcode pre{ font-size: small; color: black; font-family: consolas, "Courier New", courier, monospace; background-color: #ffffff; /*white-space: pre;*/}.csharpcode pre { margin: 0em; }.csharpcode .rem { color: #008000; }.csharpcode .kwrd { color: #0000ff; }.csharpcode .str { color: #006080; }.csharpcode .op { color: #0000c0; }.csharpcode .preproc { color: #cc6633; }.csharpcode .asp { background-color: #ffff00; }.csharpcode .html { color: #800000; }.csharpcode .attr { color: #ff0000; }.csharpcode .alt{ background-color: #f4f4f4; width: 100%; margin: 0em;}.csharpcode .lnum { color: #606060; }.csharpcode, .csharpcode pre{ font-size: small; color: black; font-family: consolas, "Courier New", courier, monospace; background-color: #ffffff; /*white-space: pre;*/}.csharpcode pre { margin: 0em; }.csharpcode .rem { color: #008000; }.csharpcode .kwrd { color: #0000ff; }.csharpcode .str { color: #006080; }.csharpcode .op { color: #0000c0; }.csharpcode .preproc { color: #cc6633; }.csharpcode .asp { background-color: #ffff00; }.csharpcode .html { color: #800000; }.csharpcode .attr { color: #ff0000; }.csharpcode .alt{ background-color: #f4f4f4; width: 100%; margin: 0em;}.csharpcode .lnum { color: #606060; }

Anyway, here is the class for the extensions:

   1:  using System;
   2:  using System.Xml.Linq;
   3:
   4:  namespace System.Xml.Linq
   5:  {
   6:      public static class XLinqEx
   7:      {
   8:          /// <summary>
   9:          /// Gets a short value for the specified attribute.
  10:          /// </summary>
  11:          /// <param name="element">The element to parse.</param>
  12:          /// <param name="attributeName">The XName of the attribute to parse.</param>
  13:          /// <returns>A short value representation of the attribute value.</returns>
  14:          public static short GetInt16Value(this XElement element, XName attributeName)
  15:          {
  16:              var attribute = element.Attribute(attributeName);
  17:              if (attribute == null)
  18:                  return 0;
  19:
  20:              short result = 0;
  21:              Int16.TryParse(attribute.Value, out result);
  22:              return result;
  23:          }
  24:
  25:          /// <summary>
  26:          /// Gets an int value for the specified attribute.
  27:          /// </summary>
  28:          /// <param name="element">The element to parse.</param>
  29:          /// <param name="attributeName">The XName of the attribute to parse.</param>
  30:          /// <returns>An int value representation of the attribute value.</returns>
  31:          public static int GetInt32Value(this XElement element, XName attributeName)
  32:          {
  33:              var attribute = element.Attribute(attributeName);
  34:              if (attribute == null)
  35:                  return 0;
  36:
  37:              int result = 0;
  38:              Int32.TryParse(attribute.Value, out result);
  39:              return result;
  40:          }
  41:
  42:          /// <summary>
  43:          /// Gets a long value for the specified attribute.
  44:          /// </summary>
  45:          /// <param name="element">The element to parse.</param>
  46:          /// <param name="attributeName">The XName of the attribute to parse.</param>
  47:          /// <returns>A long value representation of the attribute value.</returns>
  48:          public static long GetInt64Value(this XElement element, XName attributeName)
  49:          {
  50:              var attribute = element.Attribute(attributeName);
  51:              if (attribute == null)
  52:                  return 0;
  53:
  54:              long result = 0;
  55:              Int64.TryParse(attribute.Value, out result);
  56:              return result;
  57:          }
  58:
  59:          /// <summary>
  60:          /// Gets a double value for the specified attribute.
  61:          /// </summary>
  62:          /// <param name="element">The element to parse.</param>
  63:          /// <param name="attributeName">The XName of the attribute to parse.</param>
  64:          /// <returns>A double value representation of the attribute value.</returns>
  65:          public static double GetDoubleValue(this XElement element, XName attributeName)
  66:          {
  67:              var attribute = element.Attribute(attributeName);
  68:              if (attribute == null)
  69:                  return 0;
  70:
  71:              double result = 0;
  72:              Double.TryParse(attribute.Value, out result);
  73:              return result;
  74:          }
  75:
  76:          /// <summary>
  77:          /// Gets a bool value for the specified attribute.
  78:          /// </summary>
  79:          /// <param name="element">The element to parse.</param>
  80:          /// <param name="attributeName">The XName of the attribute to parse.</param>
  81:          /// <returns>A bool value representation of the attribute value.</returns>
  82:          public static bool GetBooleanValue(this XElement element, XName attributeName)
  83:          {
  84:              var attribute = element.Attribute(attributeName);
  85:              if (attribute == null)
  86:                  return false;
  87:
  88:              bool result = false;
  89:              Boolean.TryParse(attribute.Value, out result);
  90:              return result;
  91:          }
  92:
  93:          /// <summary>
  94:          /// Gets a string value for the specified attribute.
  95:          /// </summary>
  96:          /// <param name="element">The element to parse.</param>
  97:          /// <param name="attributeName">The XName of the attribute to parse.</param>
  98:          /// <returns>A string value representation of the attribute value.</returns>
  99:          public static string GetStringValue(this XElement element, XName attributeName)
 100:          {
 101:              var attribute = element.Attribute(attributeName);
 102:              if (attribute == null)
 103:                  return String.Empty;
 104:
 105:              return attribute.Value;
 106:          }
 107:
 108:          /// <summary>
 109:          /// Gets a byte array from the base 64 encoded value of the current element.
 110:          /// </summary>
 111:          /// <param name="element">The element to parse.</param>
 112:          /// <returns>A byte array of the base 64 encoded element value.</returns>
 113:          public static byte[] GetByteArray(this XElement element)
 114:          {
 115:              var value = element.Value;
 116:              if (!String.IsNullOrEmpty(value))
 117:              {
 118:                  return Convert.FromBase64String(value);
 119:              }
 120:              return null;
 121:          }
 122:      }
 123:  }
.csharpcode, .csharpcode pre{ font-size: small; color: black; font-family: consolas, "Courier New", courier, monospace; background-color: #ffffff; /*white-space: pre;*/}.csharpcode pre { margin: 0em; }.csharpcode .rem { color: #008000; }.csharpcode .kwrd { color: #0000ff; }.csharpcode .str { color: #006080; }.csharpcode .op { color: #0000c0; }.csharpcode .preproc { color: #cc6633; }.csharpcode .asp { background-color: #ffff00; }.csharpcode .html { color: #800000; }.csharpcode .attr { color: #ff0000; }.csharpcode .alt{ background-color: #f4f4f4; width: 100%; margin: 0em;}.csharpcode .lnum { color: #606060; }

1/19/2010


Silverlight 4 Business Application Development – Beginner’s Guide

For those of you out there wanting to get into Silverlight development but just do not know where to start, Frank LaVigne and I have just about completed our book titled Microsoft Silverlight 4 Business Application Development – Beginner’s Guide(link to pre-order). This book will be ideal for current Windows or ASP.NET developers who want to learn Silverlight and because the book is centered on Business Application Development we will empower you with knowledge so you can recommend Silverlight for the next business project at your company.

Gaining the basics required to develop in Silverlight, make use of data binding, WCF and RIA Services you will be prepared to lead the Silverlight charge at your company. Be warned, once you start developing in Silverlight you will have a hard time going back to normal ASP.NET development.

1/18/2010


SilverMap – A Silverlight Game Tile Map and Editor

I am happy to announce that I have uploaded a new project called SilverMap to CodePlex. SilverMap is a tile map control for Silverlight games that uses layered maps where the higher layers are drawn over the lower ones. In addition, individual tiles have a z-index position and can be drawn over one another. You can also place the tiles anywhere on the map, instead of in a tight grid, which is both beneficial and kind of a pain. :)

SilverMap makes use of the WriteableBitmapEx library. I also used Danc's Miraculously Flexible Game Prototyping Tiles while testing and included them as a zip with the project.

The maps that are created can be saved as XML and the layering information is stored with them. You can set the opacity of a tile and in the near future will be able to scale and rotate them. Aside from the editor the SilverMap.UIMap control can be included in your game project and has the ability to load maps from a file stream (useful for maps that download on the fly).

The code is freely available under the Microsoft Public License so feel free to use it your games, whether they are free games or not.

SilverMap Editor

12/10/2009


Silverlight 3 Book

As Frank LaVigne mentions in this post about a Silverlight 3 Book, I have been asked to co-author the book with him. I am honored that he asked me to help with completing the book and will work to deliver a solid book for any .NET developers out there getting their feet wet in the world of Silverlight business development. The book should give you some proof that Silverlight is a viable business tool and not just something for game developers to play with or to make web sites pretty.

Having already had the privilege of peer reviewing the first few chapters this is going to be a great intro to Silverlight, Frank is all about getting right into code!

9/11/2009


A Silverlight Games Star Field

Here is a really nice large star field in Silverlight if you are creating a space based game, or even if you are not it is still pretty cool. :)

8/10/2009


Silverlight and Multi-Player Games

I have been working on a multi-player library for Silverlight games over the past few months, well, off and on working on it while continuing Perenthia development.

I hope to be able to get the code on CodePlex before too much longer along with a tutorial on how to use it and a demo game.

The library will start with Duplex services but I do have plans to implement sockets in the future. Silverlight’s duplex and socket support is sufficient for RPGs and RTS or really any kind of turn based game but until Silverlight can support UDP sockets it is probably not suited to real time action games.

The goal is that the library can be used with any game engine such as SilverSprite or PlayBits and that it will provide easy to setup and use networking capabilities for your game.

The library is coming along well and I am building a demo game to help with implementation and testing that I hope to have finished in the next week or so.

8/9/2009


Game Objects - My Design

I thought I would share one of the core concepts I implemented in Perenthia that has been working quite well. Early on in development I decided to create templates and instances in regards to game objects. A template would define common, unchangable properties of an object whereas an instance would be the opposite. An example would be a Sword; there is a template for a Sword that defines its damage value, price, required skill level, etc.

I have one table that stores all the objects for the game. Since objects being actively used are loaded into memory and the table is indexed for those queries it runs pretty fast. Since I store all of the objects into one table I make heavy use of the XML data type in SQL 2005 to provide a bunch of XML Serialized Key/Value pairs that define the properties of an object. On the code side of things a dictionary provides the underlying data store for properties of the object. For instance, the Sword example above has a Power property that is used in combination with the wielder's skill in swords to determine damage. The Power property just fetches the Power value from the properties dictionary using the property name. This works a lot like the dependency properties, just my collection serializes to XML for database storage. When an object is loaded from the database the xml from the template is retrieved and added to the object, then the object instance xml is dropped into the object, overriding any template properties of the same name.

This property dictionary also allows me to store whether or not the property belongs to a template or instance. If the property belongs to a template then when the instance is serialized and saved to the database those template properties are excluded. Likewise saving a template does not serialize and save the instance properties. This structure allows for a lot of flexibility with my objects and has been working out quite well. I probably would not have used serialization and xml the way I am if I was doing a typical call to the database qith each request as the extra overhead would not have been worth the effort. However, since my objects are loaded into memory and my saves are background threaded I experience a lot of benefit of an easy to use object.

I shuld note that players character data is stored in a separate table from the core objects table. It follows the same design buy allows me to migrate and change data in the objects table without overwriting player data, since players are essentially the same as mobiles.

5/15/2009


LINQ Queries

I have spent the last three days writing LINQ qeueries over object collections and have to come to rely on LINQ pretty heavily for most query operations. I have played around some with LINQ to SQL and LINQ to Entities but I mostly use it to just query over some good old fashion collections like so:



var groups = proposal.Lines.Where(kvp => kvp.Key.Equals(key.Quarter))
                                           .Select(kvp => kvp.Value.Where(l => l.AvailType.Spot == "N" && l.AvailType.Type == "RE"))
                                           .FirstOrDefault()
                                           .GroupBy(l => new { l.NetworkId, l.UnitLength, l.BrandId });

            List<TimePeriod> weeks = proposal.GetWeeksFromOrderFlightDates(key.Quarter);
            foreach (var group in groups)
            {
                BudgetRow row = AddBudgetRow(budgetDefinition,
                    new List<string>(new string[] { group.Key.NetworkId.ToString(), group.Key.UnitLength.ToString(), group.Key.BrandId.ToString() }),
                    budgetRows, BudgetDefinitionType.WeeklyNetworkAvailTypeImps);

                foreach (var week in weeks)
                {
                    var units = group.SelectMany(l => l.Units.Where(u => week.contains(u.AirDate)));

                    row.setRawValue(week, units.Sum(u => (decimal?)u.Demo1Imps));

                    row.setLockedValue(week, units.Where(u => u.IsLockedOutOfUnitAllocation).Sum(u => (decimal?)u.Demo1Imps));
                }
            }

5/7/2009


Perenthia World Builder in Silverlight

I have been working to modify the tool I wrote for building the Perenthia world. The tool started life as a WinForms application, migrated to a WPF application but is now a part of the Silverlight Client UI. Since all of the actions are role based and controlled with permission on the server having it in the main client UI allows me to make use of all of the framework already in place for Perenthia.

The world builder UI connects to the server via WCF services tailored for world building. What this will also give me is the ability to open up the world builder to allow users to create custom dungeons, towns, etc.

Some features of the world builder are a background map of the world so I know where to place rooms, zoom capabilities that scale the map, draggable map and the ability to drag items, creatures, NPCs, etc. onto rooms on the map and configure the properties of each.

4/29/2009


Silverlight Window Control

Here is a draggable Window control I wrote in Silverlight for Perenthia. A screen shot of the Window being used can be seen at http://cameronalbert.com/post/2008/11/19/Silverlight-Game-Controls.aspx

Here is the XAML from my generics.xaml file:



<!-- Default style for Lionsguard.Window -->
	<Style TargetType="lg:Window">
		<Setter Property="Background" Value="#99000000" />
		<Setter Property="Foreground" Value="#FFFFFFFF" />
		<Setter Property="BorderBrush" Value="#FFC38312" />
		<Setter Property="Template">
			<Setter.Value>
				<ControlTemplate TargetType="lg:Window">
					<Grid x:Name="RootElement">
						<Border HorizontalAlignment="Stretch" Margin="0,24,0,0" Padding="4,4,4,4" VerticalAlignment="Stretch" BorderThickness="2,2,2,2" CornerRadius="0,0,4,4">
							<ContentControl x:Name="ContentElement" HorizontalContentAlignment="Stretch" VerticalContentAlignment="Stretch"/>
						</Border>
						<Border Height="24" HorizontalAlignment="Stretch" Margin="0,0,0,0" VerticalAlignment="Top" CornerRadius="4,4,0,0" BorderThickness="2,2,2,0" x:Name="TitleBarElement" />
						<Button Height="20" HorizontalAlignment="Right" Margin="0,3,3,0" VerticalAlignment="Top" Width="20" Content="X" FontWeight="Bold" FontFamily="Trebuchet MS" FontSize="14" x:Name="CloseButtonElement"/>
						<TextBlock Height="20" Margin="8,3,27,0" VerticalAlignment="Top" Text="Title" TextWrapping="Wrap" x:Name="TitleLabelElement" FontFamily="Georgia" FontSize="16" FontWeight="Bold" HorizontalAlignment="Left"/>
					</Grid>
				</ControlTemplate>
			</Setter.Value>
		</Setter>
	</Style>



And here is the code for the class:



using System;
using System.Collections.Generic;
using System.Net;
using System.Linq;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Ink;
using System.Windows.Input;
using System.Windows.Markup;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;

namespace Lionsguard
{
	[TemplatePart(Name = "RootElement", Type = typeof(FrameworkElement))]
	[TemplatePart(Name = "ContentElement", Type = typeof(ContentControl))]
	[TemplatePart(Name = "TitleBarElement", Type = typeof(Border))]
	[TemplatePart(Name = "CloseButtonElement", Type = typeof(Button))]
	[TemplatePart(Name = "TitleLabelElement", Type = typeof(TextBlock))]
	[ContentProperty("Content")]
	public class Window : Control
	{
		public FrameworkElement RootElement { get; set; }
		private ContentControl ContentElement { get; set; }
		private Border TitleBarElement { get; set; }
		private Button CloseButtonElement { get; set; }
		private TextBlock TitleLabelElement { get; set; }

		private Point MousePosition { get; set; }

		/// <summary>
		/// Gets or sets the Content of the Window.
		/// </summary>
		public UIElement Content
		{
			get { return (UIElement)GetValue(ContentProperty); }
			set { SetValue(ContentProperty, value); }
		}
		public static readonly DependencyProperty ContentProperty = DependencyProperty.Register("Content", typeof(UIElement), typeof(Window), new PropertyMetadata(null, new PropertyChangedCallback(Window.OnContentPropertyChanged)));
		private static void OnContentPropertyChanged(DependencyObject obj, DependencyPropertyChangedEventArgs e)
		{
			(obj as Window).SetControlValues();
		}

		/// <summary>
		/// Gets or sets the Title displayed in the title bar of the window.
		/// </summary>
		public string Title
		{
			get { return (string)GetValue(TitleProperty); }
			set { SetValue(TitleProperty, value); }
		}
		public static readonly DependencyProperty TitleProperty = DependencyProperty.Register("Title", typeof(string), typeof(Window), new PropertyMetadata("Title", new PropertyChangedCallback(Window.OnTitlePropertyChanged)));
		private static void OnTitlePropertyChanged(DependencyObject obj, DependencyPropertyChangedEventArgs e)
		{
			(obj as Window).SetControlValues();
		}

		/// <summary>
		/// Gets or sets a value indicating whether or not the close button of the title bar should be displayed.
		/// </summary>
		public bool ShowCloseButton
		{
			get { return (bool)GetValue(ShowCloseButtonProperty); }
			set { SetValue(ShowCloseButtonProperty, value); }
		}
		public static readonly DependencyProperty ShowCloseButtonProperty = DependencyProperty.Register("ShowCloseButton", typeof(bool), typeof(Window), new PropertyMetadata(true, new PropertyChangedCallback(Window.OnShowCloseButtonPropertyChanged)));
		private static void OnShowCloseButtonPropertyChanged(DependencyObject obj, DependencyPropertyChangedEventArgs e)
		{
			(obj as Window).SetControlValues();
		}

		/// <summary>
		/// Gets a value indicating whether or not the window is currently open and visible.
		/// </summary>
		public bool IsOpen
		{
			get { return this.Visibility == Visibility.Visible; }
		}

		/// <summary>
		/// An event that is raised when the window is closed.
		/// </summary>
		public event EventHandler Closed = delegate { };

		/// <summary>
		/// Initializes a new instance of the Lionsguard.Window class.
		/// </summary>
		public Window()
		{
			this.DefaultStyleKey = typeof(Window);
		}

		public override void OnApplyTemplate()
		{
			base.OnApplyTemplate();

			this.RootElement = base.GetTemplateChild("RootElement") as FrameworkElement;
			this.ContentElement = base.GetTemplateChild("ContentElement") as ContentControl;
			this.TitleBarElement = base.GetTemplateChild("TitleBarElement") as Border;
			this.CloseButtonElement = base.GetTemplateChild("CloseButtonElement") as Button;
			this.TitleLabelElement = base.GetTemplateChild("TitleLabelElement") as TextBlock;

			if (this.RootElement != null)
			{
				this.RootElement.MouseLeftButtonDown += new MouseButtonEventHandler(OnRootElementMouseLeftButtonDown);

				this.TitleBarElement.MouseLeftButtonDown += new MouseButtonEventHandler(OnTitleBarMouseLeftButtonDown);
				this.TitleBarElement.MouseEnter += new MouseEventHandler(OnTitleBarMouseEnter);
				this.TitleBarElement.MouseLeave += new MouseEventHandler(OnTitleBarMouseLeave);

				this.TitleLabelElement.MouseLeftButtonDown += new MouseButtonEventHandler(OnTitleBarMouseLeftButtonDown);
				this.TitleLabelElement.MouseEnter += new MouseEventHandler(OnTitleBarMouseEnter);
				this.TitleLabelElement.MouseLeave += new MouseEventHandler(OnTitleBarMouseLeave);

				this.CloseButtonElement.Click += new RoutedEventHandler(OnCloseButtonClick);

				this.SetControlValues();
			}
		}

		private void SetControlValues()
		{
			if (this.ContentElement != null && this.Content != null)
			{
				this.ContentElement.Content = this.Content;
			}
			if (this.TitleLabelElement != null)
			{
				this.TitleLabelElement.Text = this.Title;
				ToolTipService.SetToolTip(this.TitleLabelElement, this.Title);
			}
			if (this.CloseButtonElement != null)
			{
				if (this.ShowCloseButton) this.CloseButtonElement.Visibility = Visibility.Visible;
				else this.CloseButtonElement.Visibility = Visibility.Collapsed;
			}
		}

		private void OnRootElementMouseLeftButtonDown(object sender, MouseButtonEventArgs e)
		{
			// Set the Z-Index of the window to the top most position.
			this.BringToFront();
		}

		private void OnCloseButtonClick(object sender, RoutedEventArgs e)
		{
			this.Close();
		}

		private void OnTitleBarMouseLeave(object sender, MouseEventArgs e)
		{
			this.Cursor = Cursors.Arrow;
		}

		private void OnTitleBarMouseEnter(object sender, MouseEventArgs e)
		{
			this.Cursor = Cursors.Hand;
		}

		private void OnTitleBarMouseMove(object sender, MouseEventArgs e)
		{
			Point position = e.GetPosition(null);

			// Prevent the mouse from moving outside the bounds of the parent canvas.
			if (position.X <= 30) position.X = 30;
			if (position.Y <= 30) position.Y = 30;

			Canvas parent = this.Parent as Canvas;
			if (parent != null)
			{
				if (position.X >= (parent.Width - 30)) position.X = parent.Width - 30;
				if (position.Y >= (parent.Height - 30)) position.Y = parent.Height - 30;
			}

			System.Diagnostics.Debug.WriteLine("position = {0}", position);

			double deltaX = position.X - this.MousePosition.X;
			double deltaY = position.Y - this.MousePosition.Y;

			Point newPosition = new Point(
				((double)this.GetValue(Canvas.LeftProperty)) + deltaX,
				((double)this.GetValue(Canvas.TopProperty)) + deltaY);

			this.SetValue(Canvas.LeftProperty, newPosition.X);
			this.SetValue(Canvas.TopProperty, newPosition.Y);

			this.MousePosition = position;
		}

		private void OnTitleBarMouseLeftButtonUp(object sender, MouseButtonEventArgs e)
		{
			((UIElement)sender).ReleaseMouseCapture();

			this.Cursor = Cursors.Arrow;

			this.TitleBarElement.MouseLeftButtonUp -= new MouseButtonEventHandler(OnTitleBarMouseLeftButtonUp);
			this.TitleBarElement.MouseMove -= new MouseEventHandler(OnTitleBarMouseMove);
			this.TitleLabelElement.MouseLeftButtonUp -= new MouseButtonEventHandler(OnTitleBarMouseLeftButtonUp);
			this.TitleLabelElement.MouseMove -= new MouseEventHandler(OnTitleBarMouseMove);
		}

		private void OnTitleBarMouseLeftButtonDown(object sender, MouseButtonEventArgs e)
		{
			this.MousePosition = e.GetPosition(null);
			this.Cursor = Cursors.Hand;

			((UIElement)sender).CaptureMouse();

			this.TitleBarElement.MouseLeftButtonUp += new MouseButtonEventHandler(OnTitleBarMouseLeftButtonUp);
			this.TitleBarElement.MouseMove += new MouseEventHandler(OnTitleBarMouseMove);
			this.TitleLabelElement.MouseLeftButtonUp += new MouseButtonEventHandler(OnTitleBarMouseLeftButtonUp);
			this.TitleLabelElement.MouseMove += new MouseEventHandler(OnTitleBarMouseMove);
		}

		/// <summary>
		/// Causes the current window to be re-z-indexed to the top most window.
		/// </summary>
		protected void BringToFront()
		{
			// Search the top most "Window" and swap z-indexes.
			Panel parent = this.Parent as Panel; // Panel is the base for Canvas, Grid and StackPanel.
			if (parent != null)
			{
				int currentZIndex = (int)this.GetValue(Canvas.ZIndexProperty);
				var child = (from c in parent.Children where c is Window select c as Window).OrderByDescending(c => (int)c.GetValue(Canvas.ZIndexProperty)).FirstOrDefault();
				if (child != null)
				{
					int topZIndex = (int)child.GetValue(Canvas.ZIndexProperty);
					if (topZIndex == 0) topZIndex = 1; // If the value has not been set then just default it to 1.
					if (topZIndex > currentZIndex)
					{
						this.SetValue(Canvas.ZIndexProperty, topZIndex);
						child.SetValue(Canvas.ZIndexProperty, currentZIndex);
					}
				}
			}
		}

		public void Show()
		{
			this.Visibility = Visibility.Visible;
			// If content is present show that as well.
			if (this.Content != null) this.Content.Visibility = Visibility.Visible;
		}

		public void Close()
		{
			this.Visibility = Visibility.Collapsed;
			// If content is present hide that as well.
			if (this.Content != null) this.Content.Visibility = Visibility.Collapsed;
			this.Closed(this, EventArgs.Empty);
		}

		public void ToggleWindow()
		{
			if (this.Visibility == Visibility.Visible)
			{
				this.Close();
			}
			else
			{
				this.Show();
			}
		}
	}
}



This is how I am using it within the Pernethia UI (The content of window is actually the Character Sheet as displayed in the screenshot from above):

Namespace: xmlns:Lionsguard="clr-namespace:Lionsguard;assembly=Lionsguard.Silverlight"



<Lionsguard:Window Height="375" x:Name="diagCharacterSheet" Visibility="Collapsed" Width="634" Canvas.Left="8" Canvas.Top="19" Title="Character Sheet" Style="{StaticResource WindowStyle}" d:IsLocked="True">
    		<Perenthia_Dialogs:CharacterSheetDialog x:Name="diagCharacterSheetContent" SkillChanged="diagCharacterSheetContent_SkillChanged"/>
		</Lionsguard:Window>



Enjoy!



4/22/2009


Silverlight Drag and Drop Manager

I wrote some classes for handling drag and drop operations in Silverlight that I use within Perenthia. I thought I would go ahead and share them since I found them to be very useful in getting drag and drag working quickly in new projects.

The Drag and Drag classes consist of two interfaces (IDroppable, IDropContainer) and a manager class (DragDropManager). The interfaces are defined as such:

namespace Lionsguard
{
    /// <summary>
    /// Defines an object that can be dragged and dropped via the DragDropManager.
    /// </summary>
	public interface IDroppable
	{
		/// <summary>
		/// An event that is raised when the IDroppable item begins the drag operation.
		/// </summary>
		event BeginDragEventHandler BeginDrag;

		/// <summary>
		/// Gets the UIElement that will server as the cursor replacement when dragging the current object.
		/// </summary>
		/// <returns></returns>
		UIElement GetDragCursor();
	}

    /// <summary>
    /// Defines an object that accept IDroppable items as part of a drop operation.
    /// </summary>
	public interface IDropContainer
	{
		/// <summary>
		/// Handles the drop of the specified IDroppable item onto the container.
		/// </summary>
		/// <param name="item"></param>
		void Drop(IDroppable item);
	}
}

The DragDropManager (and and associated delegate and event args class) are defined as such:

namespace Lionsguard
{
    /// <summary>
    /// Represents a class used to manage drag and drop items.
    /// </summary>
	public class DragDropManager
	{
		private Panel Host { get; set; }
		private Point MousePosition { get; set; }
		private UIElement DragCursor { get; set; }
		private bool HasProcessedEndDrag { get; set; }
		private IDroppable Item { get; set; }

        /// <summary>
        /// Initializes a new instance of the DragDropManager class.
        /// </summary>
        /// <param name="host">The hosting panel where the drag cursor instance will be added.</param>
		public DragDropManager(Panel host)
		{
			this.Host = host;
			this.Host.LostFocus += new RoutedEventHandler(OnHostLostFocus);
		}

		private void OnHostLostFocus(object sender, RoutedEventArgs e)
		{
			EndDrag(false);
		}

		private void OnDragCursorLostMouseCapture(object sender, MouseEventArgs e)
		{
			EndDrag(false);
		}

		private void OnDragCursorLostFocus(object sender, RoutedEventArgs e)
		{
			EndDrag(false);
		}

		private void OnDragCursorMouseLeftButtonUp(object sender, MouseButtonEventArgs e)
		{
			((UIElement)sender).ReleaseMouseCapture();

			this.MousePosition = e.GetPosition(null);

			this.EndDrag(true);
		}

		private void OnDragCursorMouseMove(object sender, MouseEventArgs e)
		{
			Point position = e.GetPosition(null);

			double deltaX = position.X - this.MousePosition.X;
			double deltaY = position.Y - this.MousePosition.Y;

			Point newPosition = new Point(
				((double)this.DragCursor.GetValue(Canvas.LeftProperty)) + deltaX,
				((double)this.DragCursor.GetValue(Canvas.TopProperty)) + deltaY);

			this.DragCursor.SetValue(Canvas.LeftProperty, newPosition.X);
			this.DragCursor.SetValue(Canvas.TopProperty, newPosition.Y);

			this.MousePosition = position;
		}

        /// <summary>
        /// Begins a drag operation for the specified IDroppable instance starting at the specified mousePosition.
        /// </summary>
        /// <param name="droppable">The IDroppable instance to being dragging.</param>
        /// <param name="mousePosition">The Point at which the drag operation will begin.</param>
		public void BeginDrag(IDroppable droppable, Point mousePosition)
		{
			if (droppable != null && this.Host != null)
			{
				System.Diagnostics.Debug.WriteLine("Begin Drag...");
				this.Item = droppable;

				this.DragCursor = droppable.GetDragCursor();
				this.DragCursor.LostFocus += new RoutedEventHandler(OnDragCursorLostFocus);
				this.DragCursor.LostMouseCapture += new MouseEventHandler(OnDragCursorLostMouseCapture);

				// Add the drag cursor to the host control and set the z-index very high.
				this.DragCursor.SetValue(Canvas.ZIndexProperty, 5000);
				this.Host.Children.Add(this.DragCursor);
				this.Host.Cursor = Cursors.Hand;

				this.MousePosition = mousePosition;
				this.DragCursor.SetValue(Canvas.LeftProperty, this.MousePosition.X);
				this.DragCursor.SetValue(Canvas.TopProperty, this.MousePosition.Y);
				this.DragCursor.Visibility = Visibility.Visible;

				this.HasProcessedEndDrag = false;

				this.DragCursor.CaptureMouse();

				this.DragCursor.MouseLeftButtonUp += new MouseButtonEventHandler(OnDragCursorMouseLeftButtonUp);
				this.DragCursor.MouseMove += new MouseEventHandler(OnDragCursorMouseMove);
			}
		}

		private void EndDrag(bool processDrop)
		{
			// This prevents the mouse up event or the end drag event firing more than once from causing the
			// events to bubble up and the drop be handled more than once.
			System.Diagnostics.Debug.WriteLine("End Drag...");
			if (this.HasProcessedEndDrag) return;
			this.HasProcessedEndDrag = true;

			// Reshow the cursor and hide the source image.
			this.Host.Cursor = Cursors.Arrow;

			// Hide the drag cursor.
			if (this.DragCursor != null)
			{
				this.DragCursor.Visibility = Visibility.Collapsed;

                this.DragCursor.LostFocus -= new RoutedEventHandler(OnDragCursorLostFocus);
                this.DragCursor.LostMouseCapture -= new MouseEventHandler(OnDragCursorLostMouseCapture);
				this.DragCursor.MouseLeftButtonUp -= new MouseButtonEventHandler(OnDragCursorMouseLeftButtonUp);
				this.DragCursor.MouseMove -= new MouseEventHandler(OnDragCursorMouseMove);
			}

			if (processDrop)
			{
				System.Diagnostics.Debug.WriteLine("Process Drop...");
				// Search within host for an IDropContainer instance within the area of the current mouse position.
				var container = (from v in VisualTreeHelper.FindElementsInHostCoordinates(this.MousePosition, this.Host)
								where (v as IDropContainer) != null
								select v as IDropContainer).FirstOrDefault();
				if (container != null)
				{
					System.Diagnostics.Debug.WriteLine("Drop...");
					container.Drop(this.Item);
				}
			}
		}
	}

    /// <summary>
    /// Provides a delegate for handling IDroppable.BeginDrag events.
    /// </summary>
    /// <param name="sender">The IDroppable initiating the drag operation.</param>
    /// <param name="e">Event data for the operation.</param>
	public delegate void BeginDragEventHandler(object sender, BeginDragEventArgs e);

    /// <summary>
    /// Represents event data for a BeginDrag event.
    /// </summary>
	public class BeginDragEventArgs : EventArgs
	{
        /// <summary>
        /// Gets or sets the IDroppable initiating the event.
        /// </summary>
		public IDroppable Droppable { get; set; }

        /// <summary>
        /// Gets or sets the Point at which the drag operation should begin.
        /// </summary>
		public Point MousePosition { get; set; }
	}
}
To use the manager is your project have the controls wyou wish to drag and drop implement the IDroppable interface and the destinations for the drop operation should implement the IDropContainer. One control could implement both if you have operations where items can be dragged into other items of the same type.
Here is an example of the IDroppable and IDropContainer implementation (Both of which are in the same user control).
The GetDragCursor method creates the item so it looks like you are dragging it across the screen, you can have any kind of cursor replacement UIElement you want with this.

namespace Perenthia.Controls
{
public partial class AvatarListItem : UserControl, IDroppable, IDropContainer
{

#region IDroppable Members

public event BeginDragEventHandler BeginDrag = delegate { };

public UIElement GetDragCursor()
{
Image img = new Image();
img.Source = this.GetImageSource();
img.Width = 16;
img.Height = 16;
Border border = new Border();
border.Background = Brushes.DialogFillBrush;
border.BorderBrush = Brushes.BorderBrush;
border.Padding = new Thickness(2);
border.Width = 18;
border.Height = 18;
border.Child = img;
return border;
}

#endregion

private void NameLabel_MouseLeave(object sender, MouseEventArgs e)
{
if (_details != null)
{
_details.Hide();
}
PopupManager.Remove();
}

#region IDropContainer Members

public void Drop(IDroppable item)
{
// Do stuff when the object is dropped...
}

#endregion
}
}

And here is an example of the usage of the drag and drop manager (Contained within a silverlight Page class):

I declare an instance of the DragDropManager when my control is loaded (I use a Canvas for LayoutRoot as I find the drag operation to be smoother with a Canvas).
private void AdminScreen_Loaded(object sender, RoutedEventArgs e)
{
_dragDropManager = new DragDropManager(LayoutRoot);
}

When my IDroppable control instance is created I register a listener to the BeginDrag event:
avatarItem.BeginDrag += new BeginDragEventHandler(OnDroppableBeginDrag);

When the IDroppable raises the BeginDrag event, on a left mouse button click, this method is called which causes the DragDropManager to being the drag operation for the current IDroppable.

private void OnDroppableBeginDrag(object sender, BeginDragEventArgs e)
		{
			if (_dragDropManager != null)
			{
				_dragDropManager.BeginDrag(e.Droppable, e.MousePosition);
			}
		}

When an IDroppable is dropped onto the very same control this method is executed:

#region IDropContainer Members
		public void Drop(IDroppable item)
		{
                    // Do stuff when the object is dropped...
		}
		#endregion

This is pretty much all there is to it.



4/21/2009


Perenthia Blog

I have started a Perenthia Blog which will be the official blog of the game, however, I will still probably end up blogging code snippets and the like here and keep the Perenthia blog a little more high level and focused on information the actual players may want to know.

4/16/2009


Microsoft Internet Explorer 8

Microsoft announced the release of Internet Explorer 8 this morning, it is available at http://www.microsoft.com/ie8. With this new browser release Microsoft will position themselves on the top of the browser stack again. They have incorporated a lot of safe browsing and ease of browsing features into the new version that will make it the paramount browser for the normal everyday web surfer.

 EDIT: And then I started using it and now am back to using Chrome...

3/19/2009


Heading to MIX

I am flying out to MIX in a few hours and I am really excited. This will be my first time at MIX and I am looking forward to all the great sessions regarding Silverlight 3, mixing it up with other industry professionals and just hanging out in Las Vegas. :)

3/17/2009


Working on a Silverlight Multi-Player Library

I have been porting out the multi-player aspects of Perenthia into a separate library I hope to get up on CodePlex before too long. What the library will provide is some interfaces and classes related to handling multi-player environments. A central static class will manage connected clients and three protocol classes for HTTP, Polling Duplex and Sockets will use the static class to retrieve connected clients and push information down to them. A simple set of "tags" are used to send information back and forth and some providers allow for defining your own implementation of handling commands and encrypting data.

The library will be focused on providing an easy way to get setup and implement a multi-player structure. You will still need our own game engine and associated components.

As soon as I get it cleaned up a little and tested out I will put it up on CodePlex and provide a tutorial and sample application showing how to implement and use the component.

3/12/2009


Silverlight Dependency Property Snippet

I created this snippet for Dependency Properties in Silverlight. If you are creating custom Silverlight controls you might find this snippet useful. I stored my code snippets here "My DocumentsVisual Studio 2008Code SnippetsVisual C#My Code Snippets" so all you need to do is copy the file to this location. Visual Studio should load the snippet the next time you start it up. If it does not then you can go into "Tools", "Code Snippets Manager" and load it up manually.

Now when you type "propsl" and hit tab you will get a stubbed out property like below, where tabbing through the items allows you to change the type and name of the property, set the owning class and provide a default value.

public int MyProperty
{
	get { return (int)GetValue(MyPropertyProperty); }
	set { SetValue(MyPropertyProperty, value); }
}
public static readonly DependencyProperty MyPropertyProperty =
     DependencyProperty.Register("MyProperty", typeof(int), typeof(MyClass),
     new PropertyMetadata(null, new PropertyChangedCallback(MyClass.OnMyPropertyPropertyChanged)));
private static void OnMyPropertyPropertyChanged(DependencyObject obj, DependencyPropertyChangedEventArgs e)
{

Here is the code for the snippet and a link to the file:

<?xml version="1.0" encoding="utf-8" ?>
<CodeSnippets  xmlns="http://schemas.microsoft.com/VisualStudio/2005/CodeSnippet">
    <CodeSnippet Format="1.0.0">
        <Header>
            <Title>propsl</Title>
            <Shortcut>propsl</Shortcut>
            <Description>Code snippet for an automatically implemented dependency property in Silverlight.</Description>
            <Author>Cameron Albert</Author>
            <SnippetTypes>
                <SnippetType>Expansion</SnippetType>
            </SnippetTypes>
        </Header>
        <Snippet>
            <Declarations>
                <Literal>
                    <ID>type</ID>
                    <ToolTip>Property type</ToolTip>
                    <Default>int</Default>
                </Literal>
                <Literal>
                    <ID>property</ID>
                    <ToolTip>Property name</ToolTip>
                    <Default>MyProperty</Default>
                </Literal>
                <Literal>
                    <ID>ownerClass</ID>
                    <ToolTip>Owner Class</ToolTip>
                    <Default>MyClass</Default>
                </Literal>
                <Literal>
                    <ID>defaultValue</ID>
                    <ToolTip>Default Value</ToolTip>
                    <Default>null</Default>
                </Literal>
            </Declarations>
            <Code Language="csharp">
                <![CDATA[public $type$ $property$
            {
                get { return ($type$)GetValue($property$Property); }
                set { SetValue($property$Property, value); }
            }
            public static readonly DependencyProperty $property$Property = DependencyProperty.Register("$property$", typeof($type$), typeof($ownerClass$), new PropertyMetadata($defaultValue$, new PropertyChangedCallback($ownerClass$.On$property$PropertyChanged)));
            private static void On$property$PropertyChanged(DependencyObject obj, DependencyPropertyChangedEventArgs e)
            {
            }
            $end$]]>
            </Code>
        </Snippet>
    </CodeSnippet>
</CodeSnippets>

Silverlight Dependency Property Snippet



3/9/2009


Perenthia Fan Site

Perenthia has a fan site, it is called Beyond Angarath, Angarath being a primary city in within the game world. This is exciting for me and extremely cool! It is very rewarding to see people enjoying your creation enough to put work into a fan site for that creation. The forums have been getting more active lately with folks trying out the Alpha and giving lots of feedback and suggestions. I hope stay close with the community in building this game; I have a vision for it but ultimately I want people to play it and enjoy playing it.

2/19/2009


Silverlight for Multi-Player Games

I am hoping to start writing some articles about building multi-player games in Silverlight. I am planning on charting my development progress and ideas in my design and development of Perenthia.

Silverlight is a great platform for .NET developers to be able to write multi-player browser based games. You get a great tool for building a UI, animations, sounds, etc. and can program everything in your .NET language of choice. Silverlight 3 is supposed to support 3D so that will open it up even more for some great games.

Over the next few months, in between working on Perenthia, I am going to work on the first of a series of articles outlining how I built Perenthia. I will start with the Server component, outlining the core communication architecture and design decisions.

Keep checking back for more information.

2/16/2009


Going to MIX09

I am planning on attending MIX09 this year, already registered actually. I missed it last year but wanted to be present this time around for the new Silverlight announcements and to meet some of the Silverlight team. Anyway, if you are going I will be there :)

1/27/2009


Perenthia Armorial Version 1.0

I uploaded the Perenthia Armorial Version 1.0 to the Perenthia Alpha site tonight. The Perenthia Armorial is a way to provide external access to Perenthia information. The first version includes the Player Bar feature, where you pass a player name to the service and renders back HTML with player details.

The call to http://alpha.perenthia.com/Armorial/Armorial.ashx?n=Aldarian renders the following:

1/18/2009


Perenthia Alpha Testing

I did a Character Creation, Movement and Chat test last night with the Perenthia Alpha players. The tests went well, I chatted with a few players, found some bugs and was very encouraged by the whole thing. The next test should start next weekend and will include some combat/spell tests. After that we will do some questing tests, travel tests (boats and stuff) and then I will open up more of the world for the alpha players to help resolve other issues not covered by the main feature tests.

I am enjoying Silverlight as the client UI, it provides a Windows like interface with ability to be run in a browser.

1/16/2009


Client/Server Communication Data Formats

While developing Perenthia I tried several different communication formats from sending JSON serialized objects back and forth to sending byte arrays containing mostly integers indicating what should be loaded and displayed, what commands to execute etc. What I eventually settled on was a bit of a hybrid. I've created a simple set of "tags" that can be sent to and from the server. The tags are nothing more than pipe delimited strings contained within curly braces and there are a limited number of tags that provide simplicity yet flexibility with the data that is transmitted. The tags are represented in C# by tag objects allow me to create them, query them, etc.

A simple command tag for the SAY command might look like this: {CMD|SAY|"Hello World!"}

I wrote a custom tag writer class that parses the tag objects into strings to be sent to the client and likewise a tag reader that reads the strings sent from the client and parses them into tag objects.

The client can only send commands to the server but the server sends commands, messages and objects to the client. The commands are all the same, the CMD text then the one word name of the command and then a list of arguments, messages are system, chat and tell messages but objects have a bit more information. For instance, an object tag encompasses several different types starting with a base ACTOR, a PLACE, a PLAYER and a PROP or property. The ACTOR, PLACE and PLAYER tags all define the ID, Name and Descriptions of the objects, with some additional data per type but the PROP tag defines the object id of its owner and a name/value pair. An example of a PLAYER tag with properties for x, y and z coordinates might be:

{OBJ|PLAYER|3756|"Aldarian"|"My character description..."}

{OBJ|PROP|3756|"X"|45}

{OBJ|PROP|3756|"Y"|26}

{OBJ|PROP|3756|"Z"|0}

The client can find and parse the player tag and then find the properties associated with that player instance. The way the server works now it will send the full player tag once logged in and a character is selected and then from then on out it just sends property updates.

Using this type of tag structure allows quite a bit of flexibility for the client. I could choose to write a very simple client that only displays MSG tags, much like a MUD, I could write a simple 2D interface client and display and move sprites about the map using the properties from the server, etc. Once Perenthia is up and running I will probably post some information on the tags and how to talk with the server should someone feel the need to write their own client. :)

1/5/2009


Almost Alpha Time!

For those waiting, Perenthia is almost ready for alpha. I have a few more things to complete and then the first phase of the Alpha will be ready. Hopefully you have had time to look over the various races, attributes and skills on the Perenthia web site and will be ready to create a character and begin your journey.

Here is a list of the remaining tasks I need to complete before Alpha, this does not include testing and fixing bugs with these features, just implementing them:

  • Spellcasting (Basic framework is in place, just need to define some spells and test them out)
  • Monster drops, including currency, gold, silver, etc. (They don't drop anything right now, stingy)
  • Help (Just need the framework in place as the help will get compiled during the alpha)
  • Quests (May not finish these for the first phase of alpha, want to try and keep it simple to start)
  • Some UI cleanup (got some windows not responding to updates from the server)
  • Content (Need to finish adding monsters to the dungeon, just the one dungeon for alpha)

I thought I would include a couple of screen shots along with this update. The first is a shot of the map window of the world builder tool I wrote for managing the places and things within the Perenthia world. This is the shot of the Alpha testing area, a small village called "Delcor". This view is actually a windows forms application with a WPF (ElementHost) control for rendering the map. The little red dots are NPCs that I can actually drag around into other rooms on the map after I create them, makes for moving the monsters in the dungeon a lot easier. :)

This second shot is the game user interface showing the same map that I was working on in the screen shot above.


12/24/2008


Evolution of a Game UI

As I have been working on the Silverlight UI for Perenthia I find myself constantly adding little things here there to provide more information or easier click-to-action type of functionality. The UI has evolved, for the better I hope, over the past few months from my original design as I have discovered something else that needed to be displayed while hooking it into the server. This seems to be the natural progression of things, at least with the way I work. :)

Here is the latest UI screen shot, this one shows my character viewing the items a merchant has for sale, with my inventory items on the left and the ones the merchant offers on the right. I will do a development update again soon, had to backtrack a bit with the UI.

11/29/2008


Silverlight Game Controls

While building the Silverlight UI for Perenthia I have been building some re-usable game controls that I plan on posting before too long. One of the controls I created is a Window control that is just a control that provides a title bar with a close button and provides a Content section to add custom controls. I needed it to provide menu windows or panels but it could be used outside of games for just about anything. The control is draggable, as long as the parent control is a Canvas and will position itself as the top window when clicked, provided other windows exist in the same parent.

The Window control is featured in the screen shot below, the "Spellbook", "Character Sheet" and "Adenturer's"** are the windows. They contain custom controls that determine the content of the windows. The small icons at the very bottom of the screen shot are Slot controls that allow for a background image, primary image and object Item to be set on them. They also respond to clicks so click events can be handled on them. The ChatPanel under the windows is also a re-usable control and allows for adding any type of UIElement as content for the main chat area, not just text.

I hope to get these controls commented and the source up soon.

** The "Adventurer's" window is actually "Adventurer's Backpack", have a font sizing issue :)

11/19/2008


Happy Birthday to MUD

MUD is 30 years old today. For those who don't know what MUD is, it is the forerunner to the virtual worlds and MMORPGs we love and play today.

10/20/2008


Silverlight 2 Release

Silverlight 2 has officially been released. I've upgraded both Joust and Cameron's Dungeon as well as the Perenthia client. Work on Perenthia continues, albeit a little slow but it does continue. :)

10/14/2008


Joust : A Silverlight 2 Game - Source Code

I didn't get a chance to work on Joust any more before the contest deadline and won't have enough time in the next hour and half. Anyway, as promised here is the source code:

Joust Source Code

9/8/2008


Joust : A Silverlight 2 Game

I was working on a simple sports game for the Team Zone Sports Silverlight 2 Game Contest. The rules specified a sports theme but did not specify a century or the type of sports so I created a jousting game. I haven't completely finished the game, it doesn't have everything I wanted it to have and the horse kind of drives like a car :) The dust trail behind the horse actually adds to the car effect!

The game is Silverlight 2, C# and makes use of the Farseer Physics engine.

Anyway, I am hoping to get it cleaned up a little more before the contest submission deadline but not sure that is going to happen given my current workload.

I will post the source once the submission deadline is over, I want to try and get it completely finished by then but if not I will post the source anyway.

Play Joust

9/6/2008


Scripting for Games

Scripting in games is not a new concept, most games do this on some level. Scripting allows game objects to execute code that is not compiled as part of the object. In the realm of roe playing games scripting gives objects the ability to react to the world around them. For instance, an object could execute script whenever a player gets near it, allowing a vender to hawk their wares, creatures to attack, etc. There are a variety of scripting languages currently being implement in games such as Lua and Python. Recently I have been researching these two for possible addition to Perenthia to provide me the ability to add custom behavior to objects and NPCs.

Edit: Thanks to some helpful insight and information from Michael Foord I was able to get an IronPython sample working. The sample adds scripting support to an object; the code is very basic but accomplishes the task. Thanks Michael!

Here is a snippet of a console app using the latest IronPython Beta4:

using System;using System.Collections;using System.Collections.Generic;using System.IO;using System.Reflection;using System.Scripting;using IronPython;using IronPython.Hosting;using IronPython.Runtime;using IronPython.Runtime.Exceptions;using Microsoft.Scripting;using Microsoft.Scripting.Hosting;namespace IronPythonGameScripting{    class Program    {        static void Main(string[] args)        {            try            {                Actor player = new Actor("Cam");                Actor mob = new Actor("Mob");                mob.Script = @"class Mob:    def onEncounter(self, *value):        value[0].Name = ""Mr Groovy""";                Console.WriteLine("Player name was '{0}'", player.Name);                mob.Execute(Actor.EVENT_ON_ENCOUNTER, player);                Console.WriteLine("Player name is now '{0}'", player.Name);                mob.Execute("Test", player);            }            catch (Exception ex)            {                Console.WriteLine(ex.ToString());            }            finally            {                Console.WriteLine("Press any key to exit...");                Console.ReadKey();            }        }    }    public static class Engine    {        private static ScriptEngine _engine;        private static ScriptScope _scope;        static Engine()        {            _engine = PythonEngine.CurrentEngine;            _scope = _engine.CreateScope();        }        public static void Initialize()        {        }        public static void Execute(string script)        {            ScriptSource source = _engine.CreateScriptSourceFromString(script, SourceCodeKind.Statements);            source.Execute(_scope);        }        public static void Execute(string script, string className, string methodName, params object[] args)        {            ObjectOperations ops = _engine.Operations;            ScriptSource source = _engine.CreateScriptSourceFromString(script, SourceCodeKind.Statements);            source.Execute(_scope);            if (_scope.ContainsVariable(className))            {                object @class = _scope.GetVariable(className);                object instance = ops.Call(@class);                if (instance != null)                {                    if (ops.ContainsMember(instance, methodName))                    {                        object method = ops.GetMember(instance, methodName);                        ops.Call(method, args);                    }                }            }        }    }    public class Actor    {        public const string EVENT_ON_ENCOUNTER = "onEncounter";        public string Name { get; set; }        public string Script { get; set; }        public Actor(string name)        {            this.Name = name;        }        public void Execute(string methodName, params object[] args)        {            Engine.Execute(this.Script, "Mob", methodName, args);        }    }}



As it turns out I was attempting to use the IronPython libraries compiled against the Silverlight framework rather than the libraries compiled against the normal .NET framework. I was also using an older beta 1 version of the IronPython library which may have attributed to the exceptions I was seeing. Got to make sure you reference the correct assemblies when working in both .NET and Silverlight. Surprised this is the first time I've done this...

I reviewed IronPython because it has Silverlight support with the DLR but it is really designed to be used instead of C# not as a scripting language executed from within C#. With Lua though I may be able to get it working although it still seems like everything was designed to simply execute the game in lua scripts using C# as the core instead of augmenting C# classes.

I really want to just be able to raise events on the mobile objects and have instances handle those events in a custom way. I certainly don't want to compile C# on the fly either as that has its own set of issues. Compiling C# on the fly is like running an exe for each script that is executed and would be way too costly in both execution time to compile and memory consumption.

Also, since both the client and server will need to execute scripts the scripting language needs to work in both Silverlight and ASP.NET.

Perenthia currently handles commands using a Dictionary<int, Command> where the int is command value, from a list of constants, and the Command is a method pointer (delegate). When the game loads up the first time the list of commands is constructed and the methods pointers are set to methods that related to the command. An example would be a chat command. When the command comes in and is validated the method pointer is found using this dictionary and then executed in the context of the connected player. I was thinking of doing the same thing with mobiles and the actions they can take and respond to based on the world around them. It is a bit more complex with mobiles than commands since commands do a specific thing whereas every mobile could execute a different block of code for a given event. I still have some work to do on it but this will probably be what I use in place of scripting. I loose the flexibility of writing quick scripts, changing them on the fly, etc. but gain the ability to have it work within my code framework, rely on only .NET and work in both Silverlight and ASP.NET.

8/26/2008


Silverlight Game Contest

I thought I would take a little break from working on Perenthia and take part in a Silverlight Game Contest for a sports theme game. This will push out the alpha release date a little but I need a little change of pace.

I am a little late in deciding to do this but figured I would give it a try and see if I can come up with something fun by September 8th. I have an idea for a simple game, hopefully I can make it fun to play because I know it will be fun to build.

Once the game is finished I will also post the source code.

8/23/2008


Silverlight 2 Farseer Physics Geom Visual Helper Method

I ported some code from the Farseer Physics Engine XNA demos that displayed  a debug view of the geom vertices used with the Physics Simulator. This is useful if you want to see where your geoms are being rendered to the screen to make sure you have everything in the right place. I know I need this a lot, helps me to understand where I am placing body geoms.

Anyway, here is the method, the _debug variable is just a Canvas I added at the top of the UI. Keep in mind that this method will slow your game WAY down so be sure and use it to test where geoms are positioned and if everything is moving properly. I use a static variable for the PhysicsSimulator, hence the cleverly named Physics.Simulator.

        private void DrawVertices()        {            _debug.Children.Clear();            int verticeCount = 0;            for (int i = 0; i < Physics.Simulator.GeomList.Count; i++)            {                verticeCount = Physics.Simulator.GeomList[i].LocalVertices.Count;                for (int j = 0; j < verticeCount; j++)                {                    Line line = new Line();                    line.Fill = new SolidColorBrush(Colors.Transparent);                    line.Stroke = new SolidColorBrush(Colors.Magenta);                    line.StrokeThickness = 1;                    if (j < verticeCount - 1)                    {                        line.X1 = Physics.Simulator.GeomList[i].WorldVertices[j].X;                        line.Y1 = Physics.Simulator.GeomList[i].WorldVertices[j].Y;                        line.X2 = Physics.Simulator.GeomList[i].WorldVertices[j + 1].X;                        line.Y2 = Physics.Simulator.GeomList[i].WorldVertices[j + 1].Y;                    }                    else                    {                        line.X1 = Physics.Simulator.GeomList[i].WorldVertices[j].X;                        line.Y1 = Physics.Simulator.GeomList[i].WorldVertices[j].Y;                        line.X2 = Physics.Simulator.GeomList[i].WorldVertices[0].X;                        line.Y2 = Physics.Simulator.GeomList[i].WorldVertices[0].Y;                    }                    _debug.Children.Add(line);                }            }        }

8/21/2008


More Perenthia Screen Shots

Here are a few more screen shots of the Perenthia UI. The three screen shots are dialog windows that popup as a result of clicking on icons or buttons in UI. They are use a reusable control I created that has the title bar and X button and then just has a ContentControl for the guts of the dialog. The dialog window is draggable and does the hide and show thing. I need to do some cleanup on it and then I will post the source. I will also post the source for the stat bars shown on the skills dialog screen shot.

Also, I am hoping to have some time to blog about some of what I am doing with the overall game engine. I wanted to provide a development update but haven't moved the development along all that much due to working out some networking issues and trying to clean up some of the code.

The goal for Alpha is to get a working zone complete with quests, monsters, npcs, etc. However, I may do some smaller tests with the alpha registrants before all of this is complete. I was thinking of setting up a tiny zone just for testing where players could login, create a Character and accept a quest, which would be to enter a room where enemies spawn randomly and in various numbers. This would allow me to test a lot of things in one place; Character Creation, Quests, Spawning, Combat and NPC interaction.

Anyway, here are the screen shots; this first one is the Character Sheet that will display your character stats, equipped items and skills. The empty box will show the skills once I bind them to it. :)

This next screen is the actual skills screen where you can see you skill rank and all available skills. If you have Skill Points you can increase or learn new skills from this window.

This last image is just the backpack dialog, all I have is a starting candle right now. :)

8/9/2008


Perenthia UI Screen Shot

As promised here is a screen shot of the main game UI, click on the image for a full size version. The top left is the current player's avatar and details. The map in the top right corner shows you the current zone, in relation to your z-index. The icons scattered around open other windows that allow you to view your character sheet, skills, spells, backpack, etc. The interface is built in Silverlight 2 Beta 2.

Perenthia UI

7/27/2008


Quests

For those unfamiliar with the fantasy role playing genre; quests are simple to complex tasks that players complete in order to advance, get sweet gear, etc. They usually involved raiding a dungeon, slaying some terrible beast and wondering about the countryside trying to find the entrance to the hidden caverns.

What I hope to accomplish with quests is to provide a goal beyond just slaying monsters. Quests will actually move your Character through the game, while training and advancing them along the way.

One of my primary goals with Perenthia is to provide a different game play experience as players mature within the game. The first phases of the game will include some of the normal grind, killing monsters to get better gear, to level up, to kill monsters, etc. This gives the players immediate satisfaction while getting them used to moving around, using commands, spells, equipping items, buying and selling and everything else that goes along with eradication of the demon beasts of the underworld. The second phase of the game will follow a bit of a storyline, requiring players to venture into dungeons and caverns to retrieve special items they will need in order to move into the next phase of the game. While this involves a lot of the same type of situation, you have a reason to go into the dungeon and complete it, rather than just killing 10 rats because some dude is freaking out. The third phase will require the player to use the items created from the previous phase to solve puzzles, riddles and the like, which will take them into the next phase. The fourth phase will require the player to purchase some form of transportation in order to visit very far off places and located individuals who can further their progress with quests of their own. This will continue in this manner for the remainder of the game. I currently have 4 phases planned and ideas for 3 more that I hope to get written down and planned out before too long, although I will probably wait until after the alpha an beta test phases.

I want to try and provide a fun game and I feel that doing this phased game progress could provide an enjoyable gaming experience. I know when playing other games of the genre I usually burn out in the high levels because I worked so hard to get there and it is just more of the same. I would also like the world to progress forward around the players so that new challenges are introduced to both high and low level characters that are in keeping with the overall storyline. I want players to have as much fun playing the game as I am having making it. :)

I hope to provide a robust questing system that can handle these phases and still maintain a clean and easy way for players to know what to do next. For the alpha I have planned out some quests that take you around the alpha starting area and should advance the alpha players enough so that the next area will introduce another phase in the game experience.

I will do another development update after this weekend.

7/23/2008


Perenthia World Builder Screen Shots

I am not quite ready to post the screen shots of the actual game UI, still need to do some cleanup. So, since I promised I would post some screen shots here are a few of my world builder tool. This is a windows application that just reads and writes to the database.

This first screen is the map builder and as you can see I can draw the actual places/rooms in which players will adventure. The map that is displayed will be the Alpha starting map, it consists of a small town, a forest and a small sewer system. The sewer nodes are not displayed because they are one level down.

This is the creature manager window that allows me to create creature "templates", from which actual creature instances can be created and placed onto the map from above. (Using the Add Mobile button).

This is just a shot of the item manager window, displaying some of the items I've added so far, got a long way to go on these. The items also follow the same "template" pattern that the creatures do. I still need to add in support for placing the drop items on Mobiles.

I hope to have the game UI screen shots ready soon.

7/22/2008


Perenthia - Pre-Alpha Details

I have made so many changes to Perenthia since the alpha/beta release I did last year that I am actually going to take the game back to Alpha and go through the whole process again. Most of the data elements remain the same, the story is the same, the goals, etc. but the server and client pieces have been modified so much its not really the same code base.

Anyway, I am hoping to get a pre-alpha signup form on the site this weekend and get the closed Alpha live by the end of summer.

7/10/2008


Just an Update

I am still plugging along on my games, working mostly on Perenthia and checking out the new stuff in Silverlight 2 beta 2. I want to try and get the Perenthia beta 2 up and running by the middle or end of the summer, free time permitting.

 I haven't blogged much lately but I have been working on a lot of stuff. I will try and get some posts together to outline some of the stuff I have taken advantage of in developing Perenthia such as adding files as links in Visual Studio and then using partial classes to separate server and client logic and multi-threading in Silverlight and how to avoid cross thread access, which you will get exceptions on now in SL 2 beta 2. I will also try and get some screen shots of Perenthia, quite a bit has changed since the last screen shot I posted and I would like to get some of the new ones up.

6/10/2008


Pirates! Progress

Rebuilding Pirates! in Silverlight 2 is coming along well. I got it running on my Silverlight game engine I was writing for use with Perenthia, which changed some of the way it worked initially. Anyway, I plan on doing a release once I get a few levels complete. In the mean time here is a screen shot of me testing sailing around.

Since I started over in Silverlight 2 and decided to use my game engine I am having to re-write a good portion of the functionality. I had to re-do movement since some of the structure of events has changed so this screen shot is the ship sailing around.

5/2/2008


Blog Engine 1.3.1

The BlogEngine.NET folks have released a security update to BlogEngine. I would recommend downloading it ASAP.

Thanks to Mads for the heads up!

4/28/2008


Perenthia Map

I thought I would post an image of the map I have been working on for Perenthia. I made this in Photoshop using a variety of brushes and layers. I still have some more that I want to do with it but I am pretty happy with it so far.

4/11/2008


Perenthia Screen Shot

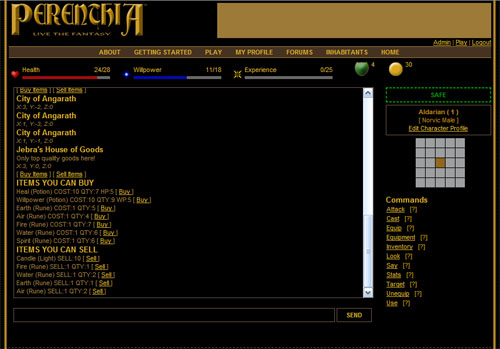

OK, I decided to post a screen shot of the Perenthia interface so far. Keep in mind this is still under development. The main sprite is not the final, just a ripped image from a Flash game called Exile and the background is just a sample I created so I could tell if the camera was following my player.



4/9/2008


Perenthia and Pirates

After surviving the flu I am back to working on Perenthia. I did some work on Pirates but I am still having some positioning issues that I can't seem to get worked out and may have to rebuild a good portion of the game.

I should have a screen shot or two of the progress on Perenthia in another few days, I will see how it goes.

I have a good portion or rather the majority of the Perenthia Server finished and have been working on the Silverlight front end. I am still not sure whether or not I will be using sockets for communication or a custom IHttpHandler implementation.

4/8/2008


Silverlight 2 and Cross Domain Web Calls

Frank LaVigne has written a nice Silverlight 2 Cross Domain Web Proxy Utility for making any type of web calls from Silverlight 2. This a great utility if you want to serve images or outside content to your Silverlight 2 apps but do not have the ability to setup a domain policy file on the content hosts server.

3/18/2008


Multi-threading in Silverlight

I've been working with Sockets in Silverlight over the past couple of days, in between getting the Pirates game to a workable Silverlight 2 state. One thing I came across today which sent me round and round was BeginInvoke. Anyone who has programmed multi-threaded applications in Windows has used this, mostly to execute code on the UI thread from events.

Anyway, controls in Silverlight 2 do not have the Invoke or BeginInvoke methods but controls do have a Dispatcher reference which lives in System.Windows.Threading. WPF programmers are probably already used to this but it was new for me. The Dispatcher allows you to check to see if you can access the current object on the current thread.

One thing to note about the Dispatcher is that it has a method called CheckAccess() that returns true if you can access the control on the current thread of false if you are not on the control's thread. The CheckAccess() method is decorated with a EditorBrowsableAttribute and has it's value set to Never. This prevents us from being able to see the method via intellisense in Visual Studio but does not prevent the method from being used. Not sure why the folks at MS wanted to hide this method and the documentation does not provide an explanation. The DependancyObject class also provides a CheckAccess method that is also hidden from the editor and just calls the Dispatcher method of the current object. Maybe it's not documented because it might be removed in the future, it is in beta after all.

So, to sum up, if you need to be able to invoke methods on a control's thread from a background thread you can do the following: (snippet from socket testing)

        private delegate void AppendTextDelegate(string text);        public void AppendText(string text)        {            if (txtChat.CheckAccess())            {                // Append the message to the chat buffer.                _content.Append(text).Append(Environment.NewLine);                // Re-post the contents of the chat buffer to the chat text and scroll to                // the bottom.                txtChat.Content = _content.ToString();                txtChat.ScrollToVerticalOffset(txtChat.ScrollableHeight);            }            else            {                txtChat.Dispatcher.BeginInvoke(new AppendTextDelegate(this.AppendText), text);            }        }

The _content control is just a StringBuilder that actually holds the content from the chat control.

Again, Silverlight 2 is in beta 1 so maybe this will change in the future.

3/14/2008


Silverlight 2 Sockets

I started working with Sockets in Silverlight 2 tonight and got my Silverlight application connected to the server and sending and receiving commands. I am going to write some code to testing sending commands from the server at the same time commands are coming from the client to see how the app and my code will handle it.

I will post some code as I get further along. Also, I made more progress on getting the Pirates game upgraded to Silverlight 2.

3/12/2008


HttpWebRequest Helper for Silverlight 2

I wrote this helper class to assist with processing an Http Request via Silverlight 2. Since we can't provide a custom class by deriving from BrowserHttpWebRequest because it is internal I wrote this helper that will create and send the request and raise an event when the request completes. I am using it in my current game to send commands to the server and process the responses.

Edit: I revised the class slightly based on finding from Mike Briseno:

Edit: Some folks have experienced issues with this class after installing Silverlight 2 Beta 2. Be sure to check your domain access policy xml file for the new changes in beta 2 but if you experience issues feel free to contact me and we can try and figure them out.

Edit: Added HttpUtility.UrlEncode to the post values before writing them to the stream. Thanks for the suggestion Stefan!

using System;using System.Collections.Generic;using System.IO;using System.Windows;using System.Windows.Browser;using System.Windows.Controls;using System.Windows.Documents;using System.Windows.Ink;using System.Windows.Input;using System.Windows.Media;using System.Windows.Media.Animation;using System.Windows.Shapes;using System.Net;namespace Lionsguard{    public class HttpHelper    {        private HttpWebRequest Request { get; set; }        public Dictionary<string, string> PostValues { get; private set; }        public event HttpResponseCompleteEventHandler ResponseComplete;        private void OnResponseComplete(HttpResponseCompleteEventArgs e)        {            if (this.ResponseComplete != null)            {                this.ResponseComplete(e);            }        }        public HttpHelper(Uri requestUri, string method, params KeyValuePair<string, string>[] postValues)        {            this.Request = (HttpWebRequest)WebRequest.Create(requestUri);            this.Request.ContentType = "application/x-www-form-urlencoded";            this.Request.Method = method;            this.PostValues = new Dictionary<string, string>();            if (postValues != null && postValues.Length > 0)            {                foreach (var item in postValues)                {                    this.PostValues.Add(item.Key, item.Value);                }            }        }        public void Execute()        {            this.Request.BeginGetRequestStream(new AsyncCallback(HttpHelper.BeginRequest), this);        }        private static void BeginRequest(IAsyncResult ar)        {            HttpHelper helper = ar.AsyncState as HttpHelper;            if (helper != null)            {                if (helper.PostValues.Count > 0)                {                    using (StreamWriter writer = new StreamWriter(helper.Request.EndGetRequestStream(ar)))                    {                        foreach (var item in helper.PostValues)                        {                            writer.Write("{0}={1}&", item.Key, HttpUtility.UrlEncode(item.Value));                        }                    }                }                helper.Request.BeginGetResponse(new AsyncCallback(HttpHelper.BeginResponse), helper);            }        }        private static void BeginResponse(IAsyncResult ar)        {            HttpHelper helper = ar.AsyncState as HttpHelper;            if (helper != null)            {                HttpWebResponse response = (HttpWebResponse)helper.Request.EndGetResponse(ar);                if (response != null)                {                    Stream stream = response.GetResponseStream();                    if (stream != null)                    {                        using (StreamReader reader = new StreamReader(stream))                        {                            helper.OnResponseComplete(new HttpResponseCompleteEventArgs(reader.ReadToEnd()));                        }                    }                }            }        }    }    public delegate void HttpResponseCompleteEventHandler(HttpResponseCompleteEventArgs e);    public class HttpResponseCompleteEventArgs : EventArgs    {        public string Response { get; set; }        public HttpResponseCompleteEventArgs(string response)        {            this.Response = response;        }    }}

And this is how I am using it in my app:

        private void ProcessCommand(short cmd, string msg)        {            App app = App.Current as App;            HttpHelper helper = new HttpHelper(app.ServerUri, "POST",                new KeyValuePair<string, string>("authKey", app.AuthKey),                new KeyValuePair<string, string>("cmd", cmd.ToString()),                new KeyValuePair<string, string>("msg", msg));            helper.ResponseComplete += new HttpResponseCompleteEventHandler(this.CommandComplete);            helper.Execute();        }        private void CommandComplete(HttpResponseCompleteEventArgs e)        {            txtAlert.Text = e.Response;        }

For the VB Developers out there David Thiessen has converted my code to VB:

' Usage....'Private Sub ProcessCommand(ByVal cmd As Short, ByVal msg As String)'    Dim app As App = TryCast(App.Current, App)'    Dim helper As New HttpHelper(app.ServerUri, "POST", New KeyValuePair(Of String, String)("authKey", app.AuthKey), New KeyValuePair(Of String, String)("cmd", cmd.ToString()), New KeyValuePair(Of String, String)("msg", msg))'    AddHandler helper.ResponseComplete, AddressOf CommandComplete'    helper.Execute()'End Sub'Private Sub CommandComplete(ByVal e As HttpResponseCompleteEventArgs)'    txtAlert.Text = e.Response'End Sub''' <summary>''' Converted C# code from http://www.cameronalbert.com/post/2008/03/HttpWebRequest-Helper-for-Silverlight-2.aspx''' </summary>''' <remarks></remarks>Public Class HttpHelper    Private Property Request() As HttpWebRequest        Get            Return _Request        End Get        Set(ByVal value As HttpWebRequest)            _Request = value        End Set    End Property    Private _Request As HttpWebRequest    Public Property PostValues() As Dictionary(Of String, String)        Get            Return _PostValues        End Get        Private Set(ByVal value As Dictionary(Of String, String))            _PostValues = value        End Set    End Property    Private _PostValues As Dictionary(Of String, String)    Public Event ResponseComplete As HttpResponseCompleteEventHandler    Private Sub OnResponseComplete(ByVal e As HttpResponseCompleteEventArgs)        RaiseEvent ResponseComplete(e)    End Sub    Public Sub New(ByVal requestUri As Uri, ByVal method As String, ByVal ParamArray postValues As KeyValuePair(Of String, String)())        Me.Request = DirectCast(WebRequest.Create(requestUri), HttpWebRequest)        Me.Request.ContentType = "application/x-www-form-urlencoded"        Me.Request.Method = method        Me.PostValues = New Dictionary(Of String, String)()        For Each item In postValues            Me.PostValues.Add(item.Key, item.Value)        Next    End Sub    Public Sub Execute()        Me.Request.BeginGetRequestStream(New AsyncCallback(AddressOf HttpHelper.BeginRequest), Me)    End Sub    Private Shared Sub BeginRequest(ByVal ar As IAsyncResult)        Dim helper As HttpHelper = TryCast(ar.AsyncState, HttpHelper)        If helper IsNot Nothing Then            Using writer As New StreamWriter(helper.Request.EndGetRequestStream(ar))                For Each item In helper.PostValues                    writer.Write("{0}={1}&", item.Key, HttpUtility.UrlEncode(item.Value))                Next            End Using            helper.Request.BeginGetResponse(New AsyncCallback(AddressOf HttpHelper.BeginResponse), helper)        End If    End Sub    Private Shared Sub BeginResponse(ByVal ar As IAsyncResult)        Dim helper As HttpHelper = TryCast(ar.AsyncState, HttpHelper)        If helper IsNot Nothing Then            Dim response As HttpWebResponse = DirectCast(helper.Request.EndGetResponse(ar), HttpWebResponse)            If response IsNot Nothing Then                Dim stream As Stream = response.GetResponseStream()                If stream IsNot Nothing Then                    Using reader As New StreamReader(stream)                        helper.OnResponseComplete(New HttpResponseCompleteEventArgs(reader.ReadToEnd()))                    End Using                End If            End If        End If    End SubEnd ClassPublic Delegate Sub HttpResponseCompleteEventHandler(ByVal e As HttpResponseCompleteEventArgs)Public Class HttpResponseCompleteEventArgs    Inherits EventArgs    Public Property Response() As String        Get            Return _Response        End Get        Set(ByVal value As String)            _Response = value        End Set    End Property    Private _Response As String    Public Sub New(ByVal response As String)        Me.Response = response    End SubEnd Class




3/7/2008


Silverlight 2.0 and My Game Engine

I got the chat portion of the game engine working with Silverlight 2.0 tonight. I am just using web services to send the commands back and forth for now. Once I complete incorporating the other portions of the engine into Silverlight I will start playing around with sockets.

3/7/2008


Silverlight 2.0

Silverlight 2.0 is available for download on silverlight.net!

3/5/2008


Data Format for Socket Server Packets

For my PBBG Engine I started off programming it all for the web and AJAX. Recently I added support for sockets by porting over my socket server code I wrote for a Flash server and incorporating the code into the PBBG Engine. In a previous post about my PBBG Engine Architecture I outlined my plans for how the socket and web pieces would work together. I spent some time today refining my command pipeline and server protocol for the socket side of the engine and will probably utilize that on the web side as well.

I decided on the following format for the data packets that will go to and from the server and client. Since it is just bytes going back and forth and I wanted to keep the data streams as small as possible I decided to abandon the string based command protocol and use this instead:

The first 2 bytes of the packet will be used to store an Int16 (short) value that indicates the command to execute. I have an event being raised from the game engine that allows the implementing libraries to set the game commands. This was a Dictionary<string, ICommand> but I am going to change it to a Dictionary<short, ICommand>. That will save me some bytes back and forth without passing the command names. I can have the clientsend the proper short value for the command typed into the console or just have the links and events in the client supply the proper short value.

The next 4 bytes will be the integer length value of the message. This will allow me to know when this message ends and the next one begins.

All the bytes following up to the length value will be the actual message sent to the client or sent to the server.

The server is already validating commands, I will just need to modify to validate these bytes and watch for buffer over runs. I still need to work out validating that a logged in user is sending the information but I will work out something, maybe have the client send the encrypted authentication key to the server after a connection is opened but before commands can be processed.



3/2/2008


PBBG Engine Architecture

Thought I would go ahead and post a little about the architecture I have set up for my PBBG engine so far. Basically, the engine is a library that other projects can reference to make building PBBGs a little easier. All of the logic for handling incoming requests and parsing commands is contained within the engine. My PBBG engine is kind of like a MUD driver, it requires a MUDLib to define objects, persist data, etc. Some interfaces are defined within the engine library to make it extensible while it also contains base class implementations of those interfaces to make building on top of working logic possible. When the engine starts up it raises a set of events and when it processes commands it also raises events to allow the implementing application to control loading of commands, determining the server implementation and creating command instances.



Not the best diagram in the world but kind of gives you the idea of how it works. The column down the middle are the interfaces defined by then engine, which also define base classes, except for the CommandManager which is just a static class for processing commands.

In addition to the classes here are the Verb abstract class, the ICommand interface and the Command<Verb> instance for creating commands from Verbs. The CommandManager raises an event when it finds the command text that allows an external library to set the ICommand instance that will execute the current command. When the engine starts up though it raises an event that will allow the implementation library to set all the commands into memory rather than creating a new instance with each command.

The IServer interface defines an IConnectionManager property where connections into the server are managed, either socket or http.

On the WEB side, which is actually a namespace ".Web"; the "Server" instance writes out a JavaScript reference to an embedded js file containing the script required to submit commands to the engine using AJAX. A separate RequestHandler class actually parses the input from the AJAX call and then attempts to locate or create an IConnection instance on the Server's IConnectionManager instance. The Server in this namespace actually sends the command to the CommandManager.

On the NET side, which is actually a namespace ".Net"; the "Server" instance actually contains the socket used to listen for incoming connections on a port specified during startup. From there the individual IConnection instances contained in the IConnectionManager instance handle processing the input and formatting it into a command. The IConnection instance contains the connected socket and will send the command to the CommandManager.

Both IConnection instances in both namespaces allow messages to be sent to the client along with custom data such as stats, gold, map data, etc. The difference between the two is that the WEB instance sends all of this back as JSON in the HTTP response and the NET instance sends the messages down the socket as they are added to the IConnection instance and then sends the additional data once the command completes execution.

That is all I have completed at this point on the engine side, it processes commands from the web and the implementation library sitting on top of it handles the commands and persists the data. There is plenty of work on the implementation library side still yet to be completed.

2/26/2008


Perenthia Update

I haven't decided yet but am considering using Silverlight 2.0 with the next release of Perenthia. I've completed a good portion of my PBBG engine that will drive Perenthia but want to be able to take advantage of some the features of Silverlight 2.0 to provide better user experience. One of the features that really interests me is the socket support for 2.0. Once I get the 2.0 beta 1 bits I am going to start playing around with running my PBBG engine on a socket server application I wrote for Flash. If all goes well I should be able to provide some better multiplayer features in Perenthia such as real time chat and possibly player vs player combat.

Perenthia will still primarily be a text-based game but Silverlight could allow me to bridge the gap between web and client software.

2/24/2008


My Buddy Clifford

From the moment you came into our home you were always daddy's buddy. We would sit in my chair and watch TV and you always helped me out in the garage when I was working on something for mommy.
You loved to be "The Ranger" when we went out back or to the park. You would run ahead on trails; exploring and taking in all the sights and smells of the forest.
You and Sydney loved "Playtime" out back, especially in the snow. She loved chasing you around the yard and loved being chased.
You had a gentle soul and an overabundance of patience with the smaller residents of our home. Always easy going and always happy to have a comfortable place to nap.

I know I will see you again someday but until that time I will hold your memory in my heart and all the joy you brought to our home. Rest in peace Clifford, you will always be "daddy's bestest buddy".

2/19/2008


Processing Commands

I might have mentioned it before but my PBBG engine is basically a commands processor. In other words it accepts commands from the client, processes the information on the server and sends the response back to the clients as JSON. Not really different from a normal web request except it is specific to my PBBG engine and you don't request documents from the server you are telling the server you want your Character to "do" something.

My PBBG engine is essentially just the command processor and the classes surrounding processing commands. I have abstracted it completely from the data source. There are no data providers or data connections at all in the engine. Instead, if it needs to get data it raises events that a deriving library can handle and pass back the required data in the form of simple interfaces. Some assumptions I did make such as ID values defined in interfaces are int values rather than object since I don't design databases with primary keys other than int. :)

One of the things I also did for the CommandManager was to created an abstract Verb class that I can derive from to create command verbs such as move, say, attack, etc. These command verbs can be defined in the deriving library and set in the CommandManager when the game starts up. Another class to assist with commands was a generic Command<T> class where T has to be a derived Verb value. So I can create Command<Move>() and the call an Execute method on the class which in turn creates the Verb instance and executes the code in the Verb class.

This has been working pretty well so far and since the CommandManager raises an event each time if processes a command I can have any number of derived libraries executing their own commands.

2/13/2008


Wilderness Adventuring

Perenthia currently provides "wilderness" areas where monsters roam around waiting to attack players who wander beyond the safety of the towns. I had originally wanted the wilderness to auto generate instead of how it works now where all the wilderness "tiles" are stored in the database. This caused over 150,000 records to have to be entered into the table and really limits expanding the word since I have to basically draw all the tiles.

For the Perenthia Beta 2 I worked out a "Regions" table to store a rectangle x,y,z value. The Regions table also stores the min and max levels required to venture into the region. Towns located within regions also carry a safe indicator so that monsters will not auto generate. Using this concept I only have to create the towns or places of importance and can let the "wilderness" be auto generated.

The auto generated wilderness is infinite in that each wilderness place visited is created and stored on the player record. Wilderness is also exclusive to the player so that monsters generated will be available only to the adventurer. A lot of games have done this with dungeon instances and I thought it was a good idea to implement in Perenthia. There will be ways to interact with others and I still have some work to do to handle group play but wilderness is intended for solo players. Now, given that wilderness is infinite I don't want players getting lost so, the last non-wilderness place they visit will be stored on their player record and if they log out and log back in they will be reset to the previous non-wilderness place. It's kind of a fast way to cheat your way back to town if you get into trouble but I am OK with that. I would rather players leap back to town before their character dies than wander aimlessly around thousands of tiles from civilization. I want the wilderness adventuring to be a fun way to earn gold, not a potential for grief.

Quests may require adventuring through the wilderness to find hidden places so logging out when you are in trouble will cause your quest to take even longer. I think this will be a good trade off because quests will offer greater rewards than adventuring and should require a higher level of mastery.

2/8/2008


Perenthia UI

Spent some time today working on the UI for Perenthia. For now it will remain AJAX based but in the future I will probably add a Silverlight front end as well. I will post some screenshots of it soon, I want to get the layout complete first.

I also spent some time working through my data model for quests. I still need to do some work but I think it will be flexible enough to allow for adding all manner of quests and adventures.

2/1/2008


Place Manager

In my previous post Memory Management I was talking about storing character and room data in server memory.

For the Character memory management I basically just use a DateTime value that gets updated each time a request is made by the connected player. If the DateTime exceeds a certain limit such as 20 minutes then the character data is saved and removed from memory. If the player just has a long pause between requests their character data will be reloaded if they make another request after the cleanup.

For the Room or Place data I've though about doing the same thing, just store a DateTime value and update it whenever a player performs an action in the room. I am not sure this is the best approach since the only commands that reference the Place object are movement, looking, some inventory and buying commands. Other actions such as casting spells, viewing stats, private chat, etc. do not reference the Place object. Of course, I guess if you are not accessing the Place object no need to have it in memory but once a player attempts to move again I would need to reload the Place. I might just maintain a list in the Place object of all the players currently located there and only remove the object once those references have been removed. I'll try a few things and record what I find.

1/30/2008


Memory Management

For Perenthia I am planning on utilizing server memory as much as possible without crippling the web server. To do that I am going to be maintaining player data and room data in memory for fast access and quicker responses from the interface.

The basic idea is that players login, choose a character and begin playing. This character information will be loaded into memory and persisted to the database when the data is changed, such as when commands are executed. As players move around the rooms they enter will also be persisted into memory to make loading and re-loading rooms faster.

The trick will be effective management of these resources. Character data will be removed after inactivity but I haven't figured out a good scheme for removal of the room data. Hope to have that working before too long though.

Anyway, that is the plan, we'll see how it works out. :)

1/29/2008


Adventures in LINQ to SQL

I've been playing around a little with LINQ to SQL for Perenthia and wanted to share a kind of nasty query I just wrote. In Perenthia the typical RPG classes are called Professions. To track these professions I have the following database tables:

The players table links over to the rad_ProfessionLevels table via the ProfessionLevelId foreign key. The rad_ProfessionLevels table also links over the rad_Levels table on the LeveId foreign key. This layout allows me to have professions, define custom names for the levels and give certain levels titles.

When loading up a player record I need to go and get the level number, level name, profession name and title prefix and suffix values from the database. Since I am using LINQ to SQL for my entity classes I wrote the following query to retrieve this information:



var titleQuery = from pl in db.ProfessionLevelsjoin p in db.Professions on pl.ProfessionId equals p.ProfessionIdjoin plt in db.ProfessionLevelTitles on pl.ProfessionLevelId equals plt.ProfessionLevelId into profLevelsfrom x in profLevels.DefaultIfEmpty()join t in db.Titles on x.TitleId equals t.TitleId into titlesfrom y in titles.DefaultIfEmpty()join l in db.Levels on pl.LevelId equals l.LevelId into levelsfrom z in levels.DefaultIfEmpty()where pl.ProfessionLevelId == avatar.ProfessionLevelIdselect new { p.ProfessionName, z.LevelNumber, pl.LevelName, y.Prefix, y.Suffix };


It's kind of a nasty beast but produces the following SQL query:



SELECT [t1].[ProfessionName],[t4].[LevelNumber] AS [LevelNumber],[t0].[LevelName], [t3].[Prefix] AS [Prefix],[t3].[Suffix] AS [Suffix]FROM [dbo].[rad_ProfessionLevels] AS [t0]INNER JOIN [dbo].[rad_Professions] AS [t1]ON [t0].[ProfessionId] = [t1].[ProfessionId]LEFT OUTER JOIN [dbo].[rad_ProfessionLevelTitles] AS [t2]ON [t0].[ProfessionLevelId] = [t2].[ProfessionLevelId]LEFT OUTER JOIN [dbo].[rad_Titles] AS [t3]ON [t2].[TitleId] = [t3].[TitleId]LEFT OUTER JOIN [dbo].[rad_Levels] AS [t4]ON [t0].[LevelId] = [t4].[LevelId]WHERE [t0].[ProfessionLevelId] = @p0


The @p0 value is the ProfessionLevelId value stored with the player record.

The LINQ query is nasty because of the three outer joins I have to perform because not all profession levels have titles. It doesn't look pretty but it does work; as I get into more LINQ writing I will probably find a better way to write this but at least I got my data. :)

1/25/2008


Advanced Physics with Farseer

Andy Beaulieu has posted another great article about Advanced Physics with Silverlight and Farseer. His demo allows you to draw objects that are then associated with a Farseer Physics Body. Andy mentions me in his post and references the code I created to render a Path based on Vertices. Andy's first tutorial "Getting Started with Farseer Physics and Silverlight" was key in helping me understand how to get Farseer working with Silverlight.



Thanks Andy!

1/24/2008


Silverlight Pirates! Prototype

The Silverlight Pirates! prototype is online!

Keep in mind that this is a very early prototype and about the only thing you can do is destroy that other ship that is sitting there. I didn't get the enemy AI quite where I wanted it but it will fire on you if you get close. You can sail around and dock at ports, although you can't buy anything yet. Once your ammo runs out you will have to refresh the page to reload the game. You will also have to refresh if the enemy ship kills you.

On my TODO list are:

  • boundaries to keep you from sailing on forever
  • merchant ships to attack
  • better enemy AI so the merchants will run and man-o-war will chase
  • sea monsters
  • whirlpools
  • storms, which should be a big challenge
  • menu for when you are at port to buy ammo or repair your ship
  • gold and/or ammo drops from enemy ships

If you find any funky bugs please let me know and of course, you will need Silverlight 1.1 in order to run the prototype.

Silverlight Pirates! Prototype

1/23/2008


BlogEngine 1.3

I finally got everything updated for BlogEngine.Net 1.3 so now my comments should work :)

1/17/2008


Silverlight Pirates!

I'm going to put up the Silverlight Pirates prototype in another day or so. The prototype will only include one enemy ship. I was going to get the port menus completed so you could buy ammo and repair your ship but I think I am going to wait until the Silverlight 2.0 beta is released.

I'm not competely happy with the enemy ship AI but I have time to work it out. Once I finish the prototype I am going to wait for Silverlight 2.0 to finish out the game.

1/13/2008


Some Additional Silverlight Pirates! Screenshots

The first screenshot is just sailing around. I was working on positioning the cannons and making sure the mini map was working as planned.



 Silverlight Pirates!



The second screenshot is me docked at the port of this island. Ports will be places to repair your ship, buy cannons, cannon balls and rum.



Silverlight Pirates!



1/2/2008


Silverlight Pirates! Arr!

Thought I would post a screenshot of the game so far. I still have a lot to do but it is coming along pretty well I think. I am hoping to get a playable prototype in the next few days, just depends on how development goes.



12/30/2007


Silverlight Pirate Game and Farseer Physics Engine

I have recently been working on a Pirate Game in Silverlight 1.1 Alpha and decided to use the Farseer Physics Engine to handle collisions, etc. I used Andy Beaulieu's Getting Started with Farseer Physics and Silverlight to create my SpriteBase class. I originally used the Silverlight Games 101 tutorials to get started and got turned on to Farseer from that site.

Since this is a Pirate game you will be sailing around in a ship encountering other ships and various islands. One of the big challenges I ran into right from the start was getting the Vertices setup for collision with an island. I am unable to visualize more than a view Vertex points at a time so I was having trouble getting the island border setup correctly. For those unaware, Farseer provides a Body class which just represents a body in space. You can assign the Body a Geometry object that actually defines its physical structure within your world. The GeomFactory class provides methods for creating circle, rectangle and polygon geometries.Since I have a island I was in need of a ploygon geometry which is created using a collection of Vector2 instances within a Vertices instance.

Geom g = GeomFactory.Instance.CreatePolygonGeom(this.PhysicsSimulator, this.Body, vertices, 1);

When creating the Vector2 instances to add to the Vertices collection you have to specify the X and Y values in relation to the center of the geometry. In other words, if I have a geometry that will be 64 X 64 and want to set a Vertex at the top, left of the square the Vector2 instance would be new Vector2(-32, -32). For an island that is 512 X 512 that is a lot of going back and forth with the calculator.

Anyway, not matter what I did I still couldn't get the vertices correct. I eventually created a helper method in a Utils class that will accept the Vertices collection, a width and height and create a Path instance that I can add to my Canvas in order to see the Vertices. This greatly helped me to understand where I was placing my points. Here is the CreatePathFromVertices method I created:

public static Path CreatePathFromVertices(Vertices vertices, double width, double height)
        {
            Path path = new Path();
            path.Stroke = new SolidColorBrush(Colors.Magenta);
            path.StrokeThickness = 1;
            path.Fill = new SolidColorBrush(Colors.Transparent);
            PathGeometry pathGeom = new PathGeometry();
            PathFigureCollection figures = new PathFigureCollection();
            pathGeom.Figures = figures;
            PathFigure figure = new PathFigure();
            figure.StartPoint = new Point((double)vertices[0].X, (double)vertices[0].Y);
            figure.Segments = new PathSegmentCollection();
            pathGeom.Figures.Add(figure);

            foreach (var vector in vertices)
            {
                LineSegment line = new LineSegment() { Point = new Point((double)vector.X, (double)vector.Y) };
                figure.Segments.Add(line);
            }

            TranslateTransform trans = new TranslateTransform();
            trans.X = width / 2;
            trans.Y = height / 2;
            path.RenderTransform = trans;

            path.Data = pathGeom;
            return path;
        }

To use it all I do is call it after creating my Vertices collection and add the returned Path to my UserControl Canvas:

this.Root.Children.Add(Utils.CreatePathFromVertices(vertices, this.Root.Width, this.Root.Height));

This was working better but I wanted to be able to create the Vertices collection a little faster. I had originally created my island image in Photoshop and so I opened up the PSD and added a new transparent layer called Vertices. In the Vertices layer I proceeded to draw points around the island using a 1px Pencil of Magenta color. After I created a point based structure around the image I saved just the Vertices layer as a PNG. I then wrote a C# WinForms application to load up the PNG and parse it pixel by pixel, creating a Vertex for each of the Magenta points located within the image. The WinForms application then writes out the Vertices code required by the Farseer engine based on these Vertex instances.

Doing this gave me the Vertices I needed but not in the order I needed. The CreatePloygonGeom method requires the vertices to be in a clockwise or counter clockwise order. Parsing each pixel of an image only gives you the pixels in order from each x to y or y to x. I ended having to add the Image x and y location of each pixel as a comment to the end of the Vertices.Add line of code being generated by my WinForms application. From there I was able to use Photoshop to re-order the Vertices so that they rendered correctly.

vertices.Add(new Vector2(-208f, -173f)); // 48, 83
vertices.Add(new Vector2(-126f, -240f)); // 130, 16
vertices.Add(new Vector2(-61f, -200f)); // 195, 56

Using my CreatePathFromVertices method I was able to see the outline of the shape I created as the collision geometry for my island. One this I did notice was that I needed the very first line of the Vertices code to be repeated at the very end in order to join the geometry shape.

vertices.Add(new Vector2(-208f, -173f)); // 48, 83
vertices.Add(new Vector2(-126f, -240f)); // 130, 16
vertices.Add(new Vector2(-61f, -200f)); // 195, 56
...
vertices.Add(new Vector2(-208f, -173f)); // 48, 83

Here is a screenshot of the game with the Path around the island displayed. Granted the path is not perfect but sufficient for the game I think. I can always alter it but the more Vertices you add the longer it takes to load.

Here is the full code from the Constructor of my island class:

public SpringIsland(PhysicsSimulator physicsSimulator)
            : base (physicsSimulator)
        {
            System.IO.Stream s = this.GetType().Assembly.GetManifestResourceStream("Pirates.SpringIsland.xaml");
            this.Initialize(new System.IO.StreamReader(s).ReadToEnd());

            this.Body = BodyFactory.Instance.CreateRectangleBody(this.PhysicsSimulator, (float)this.Root.Width, (float)this.Root.Height, 1000);
            this.Body.IsStatic = true;

            #region Vertices
            Vertices vertices = new Vertices();
            vertices.Add(new Vector2(-208f, -173f)); // 48, 83
            vertices.Add(new Vector2(-126f, -240f)); // 130, 16
            vertices.Add(new Vector2(-61f, -200f)); // 195, 56
            vertices.Add(new Vector2(9f, -201f)); // 265, 55
            vertices.Add(new Vector2(43f, -241f)); // 299, 15
            vertices.Add(new Vector2(152f, -256f)); // 408, 0
            vertices.Add(new Vector2(235f, -209f)); // 491, 47
            vertices.Add(new Vector2(218f, -155f)); // 474, 101
            vertices.Add(new Vector2(118f, -145f)); // 374, 111
            vertices.Add(new Vector2(23f, -50f)); // 279, 206
            vertices.Add(new Vector2(114f, 55f)); // 370, 311
            vertices.Add(new Vector2(90f, 92f)); // 346, 348
            vertices.Add(new Vector2(152f, 97f)); // 408, 353
            vertices.Add(new Vector2(235f, 148f)); // 491, 404
            vertices.Add(new Vector2(216f, 219f)); // 472, 475
            vertices.Add(new Vector2(147f, 252f)); // 403, 508
            vertices.Add(new Vector2(26f, 241f)); // 282, 497
            vertices.Add(new Vector2(-62f, 234f)); // 194, 490
            vertices.Add(new Vector2(-118f, 203f)); // 138, 459
            vertices.Add(new Vector2(-126f, 167f)); // 130, 423
            vertices.Add(new Vector2(-156f, 143f)); // 100, 399
            vertices.Add(new Vector2(-218f, 129f)); // 38, 385
            vertices.Add(new Vector2(-233f, 103f)); // 23, 359
            vertices.Add(new Vector2(-232f, 35f)); // 24, 291
            vertices.Add(new Vector2(-200f, 16f)); // 56, 272
            vertices.Add(new Vector2(-195f, -32f)); // 61, 224
            vertices.Add(new Vector2(-230f, -95f)); // 26, 161
            vertices.Add(new Vector2(-199f, -141f)); // 57, 115
            vertices.Add(new Vector2(-208f, -173f)); // 48, 83
            #endregion

            this.Root.Children.Add(Utils.CreatePathFromVertices(vertices, this.Root.Width, this.Root.Height));

            Geom g = GeomFactory.Instance.CreatePolygonGeom(this.PhysicsSimulator, this.Body, vertices, 1);
            g.CollisionHandler += new FarseerGames.FarseerPhysics.Collisions.Geom.CollisionHandlerDelegate(this.HandleCollision);
        }

The code in the "Vertices" region was generated by the C# WinForms application and I re-ordered manually. I will release the source to the Pirate game once it is complete, if you want the prototype code just contact me. I will probably post the prototype online once I get the Ship AI and cannons working so at least there would be more to do that just sail around the island. :)

Here is the code for the C# WinForms app that will read the image pixel data and create the Vertices code segment: SilverlightImageToVertices.zip

12/29/2007


A Silverlight Pirate Game

I've decided to take a little break from working on Perenthia and focus some time on building some smaller, shorter life span games. I have two reasons for doing this; the first being that by building some smaller games I can get the games completed faster which is very encouraging and allows me to have new projects to work on. Perenthia is very time consuming because I keep making it complex, I feel it needs this complexity though to be a fun and engaging game. The second reason is that I want to get my feet wet in Silverlight and building some smaller games would give me just that. I will continue working on Perenthia but want to get a few more of my ideas built and playable before finishing it out.

That being said the first Silverlight game I will be creating will be a Pirate game where you sail around, avoiding the navy, attacking ships and finding buried treasure. Doing something like this will enable me to get core mechanics worked out in Silverlight along with animation, collision detection, etc.

As it stands right now I have the basic player movement and ship movement down. The graphics are pretty bad as it was just something for prototyping. The game will be a top down view and hopefully provide some fun gameplay in short intervals. I want to be able to persist the player information so you can pick back up where you left off and ultimately complete the game.

The goal of the game will be to attain the buried fortune of a long dead pirate named Rough Hand James. He created a map to his treasure and scattered the pieces all across the globe. It will be your adventure to find those map pieces and locate the treasure. You will start out on your ship with the first clue to the treasure and along the way you may encounter the Royal Navy, sea monsters and other pirates. You will engage in sea and land battles, loot merchant vessels and follow clues through towns, uncharted waters and wilderness all to find the greatest fortune every massed by one pirate.

I am going to work a little on the graphics and get some animations working and then I will post either a screenshot or working prototype of the game in the next few days.

12/11/2007


More Customer Hassles from Giant Companies

Looks like Microsoft wants to join the ranks of companies with really crappy customer service such as Bank of America, Sprint, Comcast, Dell. Full story...





12/3/2007


PBBG Engine Update

Work continues on Perenthia and my PBBG Engine. I think I got the core PBBG engine framework complete, at least complete enough to start porting over the content items from Perenthia. My goal is to get a small area working with a few items, monsters, etc. before I port over the entire database.

I am hoping to improve performance in this new version as well as complete several of the features I didn't get implemented in Beta 1. The engine uses a lof of in memory objects while still persisting the world to the database. Running a lot of this in memory will eat of memory on the web server but will hopefully improve performance in regards to interactions from users. The main bulk of the places or rooms will be loaded up into memory when the application starts. Along with this load will be a load of NPCs and items located in towns and designated areas. Then, whenever a player logs in and begins playing their player object will be loaded into memory as well. At regular intervals the world state will be updated and player objects persisted to the database. Inactive player objects will be saved and then discarded from memory until the next time the player logs in.

Loading these objects into memory will keep the database connection initialization and IO traffic to a minimum and help speed up actions such as moving around and engaging NPCs. Since I don't know of anyone actually doing this I'm not completely sure it will work. :) My testing so far is working great and at most I may need to beef up the RAM on the web server.

I am still planning for a January release of Beta 2 and depending on how that beta goes; a full release in the early Spring.

11/27/2007


SQL 2005 XML Data Type, Stored Procedures and Lists

I've seen a lot of stuff out there regarding the SQL 2005 XML data type but most of it is just regurgitates the MSDN documentation. That's fine and all but what about practical uses of it? Well, I have a practical use sample. In building my persistent browser based game Perenthia I have a concept of a Place. A place is a virtual space in which objects are stored. For Perenthia the places represent the various rooms or tiles players move around on. The place or room has exits defined that allow the player to move from one place to the next. The exits are the typical directions; north, south, up, down, etc. In the database I have a Places table and a PlaceExits table. The Places table stores all the information regarding a place and the PlaceExits table stores the placeId along with a directionId and destinationId so I know what exits are available in any room and what rooms they lead to.

The simplified schema for the places would be:

 Places Tables

 In the stored procedure that retrieves the place information I use the following query snippet in the select clause:

    SELECT

        p.*,

    (
            SELECT
                e.DirectionId        AS "@directionId",
                e.DestinationId        AS "@destinationId"
            FROM
                dbo.PlaceExits e
            WHERE
                e.PlaceId = p.PlaceId
            FOR XML PATH('exit'), ROOT('exits')
        ) AS ExitsXml

    FROM dbo.Places p

 This creates an XML fragment I can then parse in the application to fill a collection of Exits on the Place object.

When saving place information I pass XML generated from the Exits collection in a stored procedure like so:

CREATE PROCEDURE dbo.Places_SavePlace  (@PlaceId int, @ExitsXml xml)

From within the save procedure I perform an update or insert of the place data and then execute the following sql to insert and update the exits for the current place:

    -- Exits

    -- Process the existing exits first

    UPDATE
        dbo.PlaceExits
    SET
        DestinationId    = e.ex.value('(@destinationId)[1]', 'int')
    FROM
        @ExitsXml.nodes('/exits/exit') as e(ex)
    WHERE
        PlaceId = @PlaceId
        AND DirectionId = e.ex.value('(@directionId)[1]', 'tinyint')

    -- Process any new exits

    INSERT INTO dbo.PlaceExits
    (
        ObjectId, DirectionId, DestinationId
    )
    SELECT
        @PlaceId,
        e.ex.value('(@directionId)[1]', 'tinyint'),
        e.ex.value('(@destinationId)[1]', 'int')
    FROM
        @ExitsXml.nodes('/exits/exit') as e(ex)
    WHERE
        e.ex.value('(@directionId)[1]', 'tinyint') NOT IN
        (
            SELECT DirectionId FROM dbo.PlaceExits WHERE PlaceId = @PlaceId
        )

This is working pretty well and keeps me from having to loop through the exits in the application and make multiple database calls.

11/14/2007


Database Model for a PBBG

I've worked on some large projects in the past with 500+ database tables but I have yet to see any persistent browser based games or any games get up that kind of table count. I only have 61 tables in Perenthia right now with a few more features to add which could possibly add another 10 tables. I would be curious to see a larger model, to see what kinds of things are handled. Right now I have tables for users, roles, places, things, avatars, skills, attributes, quests, guilds, professions and an assortment of lookup tables for things like item conditions, materials, titles, levels, etc.

11/9/2007


Some New Stat Panel Designs

Here are some of the new stat panels I have been working on for the persistent browser based game Perenthia. I may use these for other games just depends on the game. I am making these into server controls that will render divs without the INamingContainer scheme of naming so they can be accessed a little easier via JavaScript and my AJAX calls.

Perenthia Stat Panels



11/1/2007


Engine Structure

I am structuring my PBBG game engine to be as flexible as possible in order to build various types of games. In order to do that I need to abstract out the components of the engine. Since persistent browser based games are, well, browser based, I decided to follow the normal n-tier model. I am creating a data tier, my actuall database, an application tier which is the engine and will handle client connections, authentication, commands and reading and writing to the database. On top of the application layer will reside the game layer which will be customizable libraries that will use and access the application layer. This follows along the MUD driver and MUD lib pattern where my engine will be the driver which will persist data and handle all communications and my MUD libs or games will be written in an OO fashion to take advantage of the game engine.

The engine is being written in C# and in such a way to take advantage of features of ASP.NET such as HttpModules and HttpHandlers.

10/30/2007


Command Processor

For my PBBG Engine I am developing a command processor independent of the client interface. The reason for this is that I want to be able to build different interfaces such as a mobile interface, silverlight and/or flash interface. I want all the interfaces to process the same commands and be able to handle the same output from the server in order to update the UI components.

What I have come up with for the command request to the server is a simple pipe delimited string:

CMD|AUTHKEY

Where CMD would be the command to send to the server and the AUTHKEY would be a key generated when the player logs in through the authentication service that uniquely identifies the player for that session.

The response from the server will be JSON formatted objects and I still have not figured out the complete structure yet. The things I need to send back to the client would be:  An array of messages to display to the player, player's new position should they move, the player stats when in combat, their current target and any other players or mobiles they encounter. Could end up being a large set of data for certain actions so we'll see about performance there.

10/23/2007


PBBGs and Performance

One of the main things I am concentrating on for Perenthia and my PBBG Engine is performance. A lot has to go on in a game, each action be it movement, combat, etc. causes a lot of code to be executed and database calls to be made. What I am striving for in Perenthia and ultimately in my PBBG Engine will be as few database calls per command as I can get away with. Right now Perenthia makes several calls, one to load the Character and depending on the action 1-4 more database calls and then the final save Character call.

For Perenthia, I was able to get movement into the Character load call, then make one call to determine if the player can move and if any monsters are encountered, then a final call to save the character. That is probably as small as I can get movement but it still does not perform the way that it should.

I thought about caching or storing the map in memory but with over 150,000 records in the table storing the map data that is just not a good idea. Just not sure of the best approach for this. The database procedure for movement runs in under a second so I don't think that is the bottle neck, I think the bottle neck is sending all that data from the server to the client. I may try to asnychronously download the map data to the client while they are playing and just send smaller amounts of data for the map. Maybe a JavaScript file that can be auto generated using custom handlers that would contain the entire map structure with X,Y,Z and Terrain values. Then I can just use the player's current location to position them on the map. since I validate their position on the server I can still perform the monster check and move check and just not send the whole map down the pipe.

Attack is another performance bottle neck that I plan to devote some time to once I get the map movement sped up.

10/19/2007


.NET PBBG Engine

In between updating Perenthia and adding new features I have been pulling parts of the code base into a more generic PBBG Engine I am writing in C#. I started working on it when I upgraded the Knights of the Realm game and used parts of it for Perenthia. I am hoping to put Knights of the Realm Beta 2 on the new engine once I get it finished.

I am building the engine as generic as I can but it will incorporate a base rules set and some basic concepts. The base objects will be Avatars, Places and Things. These objects will contain the properties required to function within the rules set and all objects will derive from a base GameObject class that will provide a properties collection for creating custom properties on derived game objects.

The game will be driven by commands sent from the client. Some objects will handle the commands in the engine framework while other commands will cause events to be raised that deriving implementations can handle and provide custom execution or additional execution of the commands.

The egnine will basically be a commands/rules processor that I will hopefully be able to build a variety of games on. I have plans and ideas for several types of games and do not want to continually build the same thing over and over, hence the PBBG engine.

10/17/2007


ASP.NET AJAX Server Controls and PBBGs

I ran into a major performance issue with the ASP.NET AJAX Server Controls while testing my persistent browser based game Perenthia. I had initially used update panels fro the various regions on the main game interface such as the player stats, map and chat window. Programming this was simple as I could do everything in the server side code and just send back the results. With the partial page rendering feature of the ASP.NET AJAX Extensions only the update panel html was sent back to the browser.

Once I moved the application into a production environment and had people on there playing and testing the web starting running out of memory, the application was consuming the server memory at an alarming rate. What was happening was that IIS would jump 1 to 2 MB of RAM for each request made by the client, that means every time someone moved on the game map 1 to 2 MB of RAM were being held and not released. I tried a bunch of different stuff from optimizing stored procedures to caching the map data but none of it helped.

I used Firebug to watch the AJAX request and response and to see if I could reduce that down some. The response was simply HTML fragments so I wasn't too worried about that but the request sent the entire ViewState up to the server with each post. The ViewState for the game page could be quite large since I was appending messages to the chat window which was a server control.

I was able to eliminate the ViewState issue with the chat window but the app was still consuming RAM and not releasing it.

I decided to try just a simple JavaScript only AJAX post using the Microsoft AJAX Client Libraries. After doing some basic tests on the chat window I decided to rebuild the game interface using only client side AJAX calls, no update panels. This has resolved the server memory issue, why, I am still not sure, must be something with the way the resources are handled in .NET. I have not encountered the slow downs or crashes from before and the app is actually running a little smoother on the front end as well.

What I settled on was a custom ASHX handler class that handles the commands from the client and returns JSON strings that the UI can then translate and use to update the interface components. I had to rebuild some of the interface components as JavaScript objects but overall it was the right choice. Not too mention that I can now use that same handler with other interfaces such as Flash or Silverlight.

In conclusion, while the AJAX Server Controls might work great for most web sites they are definitely not optimal for a persistent browser based game (PPBG).

10/1/2007


Perenthia PBBG Post-Beta Release

I released the persistent browser based game Perenthia last week into a public BETA. Got some great folks on there testing stuff out, finding bugs and overall just providing great feedback. It's funny how much can get past your unit testing when you are the one who wrote the code.

Anyway, got a game refresh and loads of bug fixes coming either tonight or tomorrow and then hopefully I can move on to getting quests ready to go.

9/21/2007


Upload started..

I have started the database upload for Perenthia and will move the files shortly thereafter. Once everything is tested up on the server to ensure it is working properly I will open up the game.

9/14/2007


Perenthia PBBG Release Tomorrow

The persistent browser based game Perenthia will open for a public Beta tomorrow evening. Some of the quests have yet to be completed but they are higher level quests so I still have time to map them all out.

Banks and Households are not complete and although you may see references to them they do not function as of yet. Banks will allow you to borrow money and store items and gold and Households are player run groups that will feature private messaging, group events and quests and could possibly include Household vs Household competitions.

Since banks are not complete you can pretty much carry as much stuff as you want. Once banks are complete you will find yourself restricted if you carry too much.

9/13/2007


Perenthia Release Update

Not sure what time of day I will open up Perenthia on Friday the 14th. Probably sometime in the morning, depends on how my last testing goes. I am finishing up testing out the quests and auto generated dungeons. If everything goes well, which it never does, the game will be live Friday morning. If I run into snags could be later in the day or worse case Saturday.

For those who don't know, Perenthia is a persistent browser based game set in a fantasy world and will feature Character Profiles, Live Chat, Quests, Forums, Households and hopefully Player vs Player combat.

Character Profiles will allow you to upload an avatar image, provide a description about your Character and even maintain a journal where other players can leave you comments and you can catalog your adventures.

Live Chat is built into the interface and will allow you to chat with other players in the game.

Quests are an important part of the game and the main storyline drives several key quests that will send you all across the landscape.

Forums allow you to interact with other players, helping each other on quests, reporting bugs, etc.

Households have yet to be completed but will be player run and allow the head of household to assign special titles to levels and create a unique experience for members.

9/11/2007


Silverlight Goodness

Silverlight goodness is coming to the D.C. area in the form of a Silverlight Dev Camp. Keep checking Frank's Blog for more details.

9/11/2007


PBBG Mapper

Here is a screenshot of the PBBG mapping tool I wrote for creating the Perenthia world. The screenshot is the City of Angarath, a starting point in the game. The mapper is a  Windows application written in C# 2.0.

PBBG Mapper

9/11/2007


Perenthia PBBG AJAX Screenshot

Here is a screenshot of the AJAX interface for my PBBG Perenthia, which is scheduled for a beta release this Friday September 14th. This will be the main game screen where all actions related to game play will take place.

Perenthia PBBG AJAX UI

9/10/2007


Perenthia PBBG Update

Making good progress toward the Beta release of my PBBG Perenthia on September 14th. Not sure what time of day I will open the site up, probably in the morning some time on the 14th. Anyway, the AJAX game interface is working great after I scaled it down a little. I am still working on a more advanced interface in Silverlight 1.1, might be a little while before that is finished though, I want to get the game up and running first.



9/7/2007


Perenthia Release Date

Alright, it is looking like the first initial release of Perenthia will be September 14th 2007. The initial release will feature an AJAX based user interface, kind of looks like a MUD client, with a new Silverlight interface to follow in the coming months, once Silverlight 1.1 goes into Beta with a Go Live license.

Players will be able to create Characters with a special profile page where they can describe their Characters and even upload an avatar image. A friends list on the Character Profile page will allow players to link to their friends and simple Character blog will allow the player to keep visitors up-to-date on their progress. Some other features of Perenthia will include player run Households, where players can make up advancement ranks, various length quests for all levels of play that will focus and determine the main story line, a different kind of magic system consisting of runes of power that you can combine to create spell effects and of course adventuring into wilderness to defeat scary monsters.

For those unaware, Perenthia is a persistent browser based game (PBBG) set in a fantasy medieval world.

9/3/2007


Adventures in Silverlight

I spent some time last night and today playing around in Silverlight to make a final decision on whether or not I will use it in my PBBG Perenthia. I had already started building out a Flash UI but just keep running into the same issues with Flash; the IDE sucks and I keep having to rebuild C# classes in ActionScript. So, I decided to dig a little more into Silverlight to see if using the 1.1 version would be feasible. The word from MS is that the beta 2 with a go live license should be available sometime later this year. That might work out pretty well for me and my current timeline. I have most of the server functionality for Perenthia complete but just can't find a UI combination that gives me what I want and keeps the overhead down. Anyway, I am going to spend the next few days playing around with a Silverlight UI and see if I can come up with something I can use in place of Flash.

8/29/2007


Flash UI Screenshot for Perenthia PBBG

Here is a screenshot of the UI (user interface) that I am building in Flash for my PBBG Perenthia. I am converting the AJAX/HTML elements to Flash so it it somewhat incomplete but does give you the overall feel of the interface. The place where that gray square is will be the map and next to the map will be displayed the name of the place/room you are in and a listing of other players, NPCs, etc. in that place/room.

I am going to do a write up with my findings in regards to the Perenthia PBBG UI using AJAX, Flash and Silverlight. Might do that sometime later today.

Perenthia PBBG Flash UI

8/27/2007


Perenthia PBBG Flash UI

I've decided to use Flash to provide the UI for my persistent browser based game Perenthia. I went back and forth between Flash and AJAX and even looked into Silverlight a little and Flash just has the maturity needed for a good PBBG interface.  I originally had the main game UI written using AJAX but found it to be a little cumbersome when a lot of activity was occuring on the back end, just too much traffic generated for one user. I looked into Silverlight a little but I am going to wait until the 1.1 version is released so I can program in C# on the backend. Flash seems to be able to provide me with what I need and I wrote custom ASHX handlers on the ASP.NET side to handle commands from the Flash UI. The UI is basically just an advanced MUD client, in that the primary output is text based. However, with Flash I will be able to provide a better map and add some additional graphical features later on down the road. Since the command handler is a custom ASHX handler in .NET I could really allow any type of client to connect, as long as that client can send XML as an HTTP POST and receive the and parse the XML response from the page.

I will post a screen shot of the UI in the next day or so.



8/26/2007


Visual Studio 2008 Sivlerlight JS 1.0 Page ItemTemplate

I created a Visual Studio 2008 ItemTemplate for Silverlight 1.0 JS. The template creates a Page.xml and Page.js files for creating Silverlight 1.0 JS pages in an existing web project. I built this template for adding Silverlight 1.0 XAML pages to an existing ASP.NET project I am building using Visual Studio 2008. The web project is a 2.0 project so I can't reference the 3.5 JScriptSilverlightPage Item Template.

8/24/2007


Silverlight Maze Game

I put up my first Silverlight project, a simple Silverlight Maze Game. You need to navigate the maze before the time runs out. This requires the Silverlight 1.1 Alpha Refresh in order to run properly in your browser.

8/22/2007


Silverlight Game Tutorials

I found a good resource for creating games in Silverlight at SilverLight Games 101. Some basic tutorials and a game loop and key handler classes for use in your own projects. I am currently working on making some small Silverlight games and will eventually write a PBBG in Silverlight. I find it a little easier to use than Flash, escpecially the 1.1 Alpha since I can code in C# instead of JavaScript.

8/22/2007


Perenthia Update - Release Soon

I am hoping to release Perenthia around the end of August. Everything is mostly complete and ready to go, I have a few UI element issues to work out and then the game will go live with a public beta.

8/13/2007


Visual Studio 2008

I downloaded and installed the Visual Studio 2008 Beta 2 and I am really liking it. Aside from the new .NET 3.5 features the IDE itself is awesome. Visual Studio remains one of the best IDEs out there. If you want some good articles on VS 2008 check out Scott Gu's blog post on VS 2008.

8/2/2007


PBBG Ideas

I've been doing a lot of note taking lately, I've been trying to write out all the ideas that keep floating around in my head for various persistent browser based games and even a few that are more in the direction of casual games. I have a tablet PC so I tend to scribble my notes throughout the day, while working, at home while watching tv, etc. Now, if I could just find an army of free programmers to build the games. :)

8/1/2007


C# Socket Server for Flash/ActionScript

After doing some research on available socket servers for Flash I decided to write my own in C#. Most of the server out there are written in Java and while there are some open source implementations I prefer to stick with a code base I know and understand.

I got the Flash movie to connect to the C# server yesterday using JSON protocal instead of XML as my transport mechanism. I used a .NET JSON library and an ActionScript 2.0 JSON library to build the objects on both sides. I created a C# class for passing data, serialize as a JSON string and send it the Flash movie. On the ActionScript side I created an AS class that mimics my C# data gram class and use the AS JSON lib to serialize and send that same object structure to the C# server. Working pretty good so far, I am able to login to the server and send and receive messages.

My next steps will be creating a basic flash game that I can use to run around and do battle while sending and receiving messages from the server.

I have plans to make a Flash based PBBG with real time combat, we'll see how it goes. :)

7/27/2007


Flash and PBBGs

I've been looking into Flash as a possible alternate UI for my PBBG Perenthia because of the benefits of being able to write a socket server that Flash can connect to and provide real time updates to players. The only way to accomplish this in a web scenario is to constantly poll the server for updates, rather than have them pushed to the client. I am trying to weigh the options and impact of this along with the UI beneifts Flash would deliver, such as animated characters, mobs, etc.

7/24/2007


Knights of the Realm PBBG Update

I just released another update to the Knights of the Realm 2 PBBG. The update includes several bug fixes reported by the players as well as a few enhancements requested by the players.

The Knights of the Realm 2 PBBG is a combat oriented game where players compete against each other in nightly tournament events. The game is free and only requires a browser to play.

7/18/2007


GridView Grouping and Summaries

If you are looking to group your grid view results and provide summaries such as totals, etc. I found a great utility for grouping GridView results. It is a set of classes that provide a helper for your grids to allow grouping. The component is super easy to use just remember that if you don't use a data source control you have to handle the GridView Sorting event. You don't actually have to have any code in the event handler, just handle the event.

7/18/2007


Perenthia Households

Over the next couple of days I will be implementing the household management screens into the main interface of my PBBG Perenthia. Players who create and manage a household will use these screens to add and edit ranks of advancement, set membership requirements, view active members and appoint household officers.

After the household screens are in place and tested I will implement the new tournament screen layouts which will allow players to participate in tournament events to increase their skills and fame.

Crafting is still bare bones and may be added during the beta, not sure yet how that will play out. Crafting will give players the ability to create items from core elements and other items. An example of crafting would be taking iron ore and using a forge to create a sword, maybe even wrap the hlt in leather.

The adventuring aspect is more or less complete for the beta release and includes dynamically generated areas for players to roam around in complete with dynamic and randomly generated monsters.

Skills will be the primary factors in all actions from adventuring to tournaments to crafting. The skills system is already in place but some hooks need to be added to the household interface to allow players to require certain levels of skills in order to advance within a household.

I am hoping these core elements will provide a flexible and fun playing environment for members. I have a large list of future enhancements and elements I removed from the alpha phase that could show themselves again, just not sure yet.

A new web site for Perenthia will go up when the game enters open beta so fi the site looks different when you visit again, be sure to sign up and play!

7/17/2007


X, Y, Z Coordinate Struct for .NET PBBGs

I created a struct in C# for storing the X, Y and Z coordinates for characters, objects and rooms within my current PBBG project Perenthia. The struct, called Vector, is serializable and can be used as the key value in a sorted or generic dictionary. Here is the code for the class.

[Serializable]    public struct Vector : IEquatable<Vector>    {        public static readonly Vector Empty = new Vector(0, 0, 0);        public Vector(int x, int y, int z)        {            _x = x;            _y = y;            _z = z;        }        public void SetLocation(int x, int y)        {            this.SetLocation(x, y, this.Z);        }        public void SetLocation(int x, int y, int z)        {            _x = x;            _y = y;            _z = z;        }        public Vector Copy()        {            return new Vector(this.X, this.Y, this.Z);        }        public static Vector FromString(string value)        {            if (!String.IsNullOrEmpty(value))            {                string[] parts = value.Split(',');                if (parts != null && parts.Length == 3)                {                    int x, y, z;                    if (Int32.TryParse(parts[0], out x))                    {                        if (Int32.TryParse(parts[1], out y))                        {                            if (Int32.TryParse(parts[2], out z))                            {                                return new Vector(x, y, z);                            }                        }                    }                }            }            return Vector.Empty;        }        #region GetHashCode        public override int GetHashCode()        {            // The Y value should always come first in any kind of sorting, comparison or hashing operations            // followed by X and then Z because typical loops would start with the Y value.            return (this.Y.GetHashCode() + this.X.GetHashCode() + this.Z.GetHashCode());        }        #endregion        #region Equals        public bool Equals(Vector obj)        {            // The Y value should always come first in any kind of sorting, comparison or hashing operations            // followed by X and then Z because typical loops would start with the Y value.            if (obj != null)            {                if (obj.Y == this.Y)                {                    if (obj.X == this.X)                    {                        return (obj.Z == this.Z);                    }                }            }            return false;        }        public override bool Equals(object obj)        {            if (obj is Vector)            {                return this.Equals((Vector)obj);            }            return base.Equals(obj);        }        #endregion        #region ToString        public override string ToString()        {            return String.Format("{0},{1},{2}", _x, _y, _z);        }        public string ToString(bool forDisplay)        {            if (forDisplay)            {                return String.Format("X = {0}, Y = {1}, Z = {2}", _x, _y, _z);            }            return this.ToString();        }        #endregion        #region Operators        public static Vector operator +(Vector v1, Vector v2)        {            return new Vector(v1.X + v2.X, v1.Y + v2.Y, v1.Z + v2.Z);        }        public static Vector operator -(Vector v1, Vector v2)        {            return new Vector(v1.X - v2.X, v1.Y - v2.Y, v1.Z - v2.Z);        }        public static bool operator ==(Vector v1, Vector v2)        {            return v1.Equals(v2);        }        public static bool operator !=(Vector v1, Vector v2)        {            return (!v1.Equals(v2));        }        public static bool operator >=(Vector v1, Vector v2)        {            // The Y value should always come first in any kind of sorting, comparison or hashing operations            // followed by X and then Z because typical loops would start with the Y value.            if (v1.Y >= v2.Y)            {                if (v1.X >= v2.X)                {                    return (v1.Z >= v2.Z);                }            }            return false;        }        public static bool operator <=(Vector v1, Vector v2)        {            // The Y value should always come first in any kind of sorting, comparison or hashing operations            // followed by X and then Z because typical loops would start with the Y value.            if (v1.Y <= v2.Y)            {                if (v1.X <= v2.X)                {                    return (v1.Z <= v2.Z);                }            }            return false;        }        #endregion        #region Properties        private int _x;        public int X        {            get { return _x; }            set { _x = value; }        }        private int _y;        public int Y        {            get { return _y; }            set { _y = value; }        }        private int _z;        public int Z        {            get { return _z; }            set { _z = value; }        }        #endregion        #region IEquatable<Vector> Members        bool IEquatable<Vector>.Equals(Vector other)        {            return this.Equals(other);        }        #endregion    }

7/16/2007


BlogEngine.NET

I have to say that BlogEngine.NET is a great blog utility. I was using .Text for a long time and just never wanted to go through the conversion to Community Server. I just did not need a community, I just wanted a blog. I reviewed a bunch of different blog engines out there and really liked all the features of BlogEngine.NET. If you are looking to setup a blog and want to have control over your data store using providers and have all the latest features like tagging, auto pings, etc. then snag BlogEngine.NET.

7/13/2007


JavaScript Libraries

I found some good javascript libraries for PBBG or any kind of web development.

This one is a graphics library useful for drawing vector graphics to the browser. Works great, just remember to set the position:relative value of the DIV you wish to draw in. :)

DHTML: Draw Line, Ellipse, Oval, Circle, Polyline, Polygon, Triangle with JavaScript

This site has a collection of useful libraries for all manner of web related activities.

Javascript Toolbox: Reusable Libraries And Scripts Plus Information

7/12/2007


PBBG Player Interactivity

I think one of the most overlooked but import feature in PBBGs is player interactivity. You can have the best looking game out there with the fatest database, application layer and what not but if you players can not interact with one another as the main focus of the game you will struggle to achieve sucess. There are plenty of folks out there who like solo game play, I am one of those, but the majority of folks want to interact with others. This is especially true with female players. While all players like to interact, not all male players will participate in interactive features unless they advance their character in some, females on the other hand will seek to interact regardless of advancement opportunities.

So, in short, figure out ways to allow players to interact within your games, keeping in mind which demographics you are targeting with the feature and you will see a greater return on investment for your game.

7/12/2007


Perenthia Update

I've had Perenthia in a private test phase over the past few weeks and have decided on the core features that will make it into the public beta of the game. I have a few components to remove and a little more testing to do before the game enters a live beta stage, I am hoping not more than a few weeks.

The game will feature Households which are player run groups where the players can setup the levels and requirements of advancement. Crafting will also be a major feature, allowing players to craft the various items to be used in game. These features will center around a fantasy world with magic and monsters. Another feature that should make it into the beta will be tournaments, both individual and household. More on these features later.

7/11/2007


PBBG Mapper

I've been working on a tile mapping tool I call PBBG Mapper here lately while working on my persistent browser based games. The tool is a Windows based application written in C# 2.0 and will include some plugin functionality so that other developers can extend it an customize it. The progam saves all tile maps as XML for easy portability and works pretty well. I will post some screenshots once I get it into a full working version.

7/10/2007


Role Playing Game Maps

I found some great tutorials for creating awesome looking role playing game maps using Photoshop. The site has videos that walk you through the steps to create the maps. Plan on seeing some maps based on these tutorials in my persistent browser based game Perenthia in the near future.

7/4/2007


PBBG Game Engine

While building the persistent browser based game Perenthia I have been putting together a PBBG Engine that I am going to use to build additional games. Among those additional games will be Aelerion, which will be a space adventure game in which I plan to use Silverlight as the front end user interface.

The Knights of the Realm 2 uses a mixure of some of the code I wrote for the PBBG Engine and some of the code I migrated from the first version of the game. I also chose to try something new with Knights of the Realm in that I stored XML serialized objects in the database using my XQuery class. I decided to try this method to see what kind of impact it would have on game play performance and maintainability. Since Knights of the Realm is not a real time game and executes tournaments in the early hours of the morning I figured this would be a safer test.

Since writing Knights of the Realm 2 I decided not to use the XML serialiazation for my PBBG Engine because I want the engine to be able to support real time game play and serialization is just too slow. I did some perf testing with a database, xml serialization and flat text files and found that flat text files were the fastest when saving information, xml serlization was the slowest and database fell in the middle. When loading information back into objects the database was the fatest because I didn't have to do a lot of conversions from strings to integers like I did with the flat text files. Xml serialization came in last in loading as well and not just in miliseconds but was a good 3-4 seconds behind the database and flat files in both loading and saving. However, using an XmlReader and XmlWriter to read and write the Xml values into an Xml data type column in the database turned out to be faster than serialization but still slower than straight database access because of the need to convert Xml node value strings to integers.

My PBBG Engine will utilize a mixure of regular data type columns and xml columns in the database. The reasoning is that static things such as player name, race and gender will be static columns but the player table will also feature and xml data type column for storing custom properties. A base player object will contain a key/value collection where custom properties can be stored and that collection will use the XmlReader and XmlWriter to save the key/value pairs in the xml data type column.

I also plan on making use of the application cache in ASP.NET for some of the common objects such as rooms so that I am not making thousands of database calls everytime a player moves around in the world. Some of my initial tests have worked out quite well using a lightweight set of objects that represent rooms or tiles on a map. These objects contain just enough information to determine whether or not a player can move into the room and their coordinates in the overall map.

7/3/2007


Tooltips in PBBGs

I came across a great article on tooltips for persistent browser based games. In the article Vindexus shows how to use the BoxOver script to enhance PBBGs with tooltip functionality. His sample uses the box over script and the title of span tag. A good example of using simple pre-existing html tags to enhance the gaming interface.

I am working on including this functionality in my current PBBG The Knights of the Realm 2 and will also incorporate it into my other game. The use of tooltips does provide a great feature for users. I may incorporate a way to turn the tooltips on and off as well.

7/2/2007


The Future of Persistent Browser Based Games

I've been developing persistent browser based games using ASP.NET and AJAX for a little while now but an emerging technology from Microsoft called Silverlight that I believe will re-define how browser games are built for .NET developers. Silverlight is Microsoft's answer to Flash but with advantages for .NET developers in that I can program C# on the backend and have Silverlight on the front end.

My current PBBG Perenthia will be ASP.NET and AJAX but another game I have in the design phase called Aelerion will feature a Silverlight front end using (hopefully) the same game engine I wrote for Perenthia.

6/30/2007
